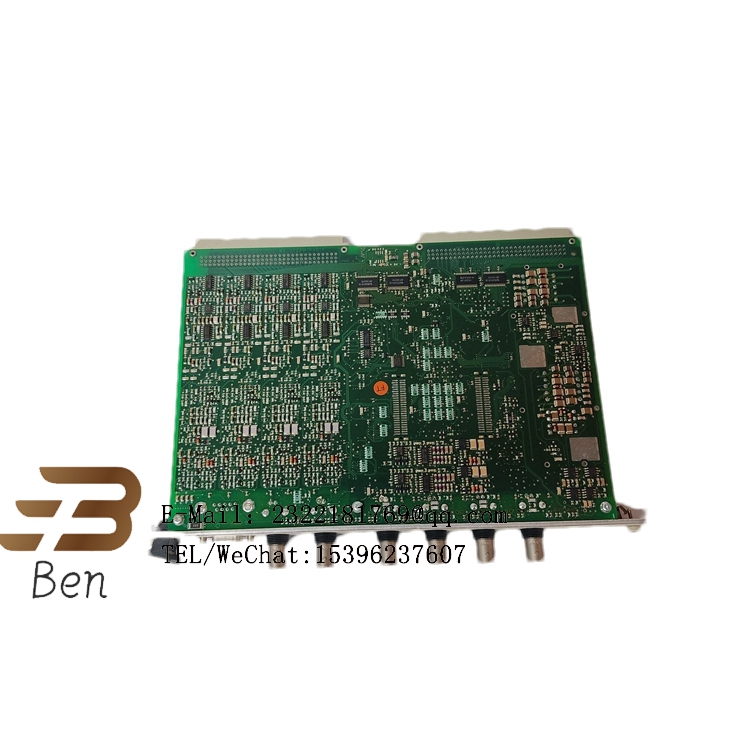

200-510-071-113 200-510-111-034 VM600 MPC4 machinery protection card
The 200-510-071-113 and 200-510-111-034 VM600 MPC4 offer a high degree of flexibility and programmability. With Control Generator software, programmers can configure, debug, and visualize operations through a unified development environment, thus simplifying the programming and operation process.
KEY FEATURES AND BENEFITS
• From the Vibro-Meter product line
• Continuously online machinery protection card
• Real-time measurement and monitoring using
state-of-the-art DSP techniques
• 4 dynamic signal channels and 2 tachometer
(speed) channels, all individually
programmable
• Programmable broad-band and narrow-band
filters
• Simultaneous amplitude and phase monitoring
in order-tracking mode
• Programmable Alert, Danger and OK set points
• Adaptive Alert and Danger levels
• Front-panel BNC connectors for easy analysis of
buffered “raw” sensor signals
• Front-panel LEDs indicate status and alarms
KEY BENEFITS AND FEATURES (continued)
• Integrated power supplies for sensors and
signal conditioners such as IEPE
accelerometers and proximity measurement
systems
• Live insertion and removal of cards
(hot-swappable)
• Available in “standard”, “separate circuits”
and “safety” (SIL) versions
APPLICATIONS
• Machinery protection and/or basic
condition monitoring
