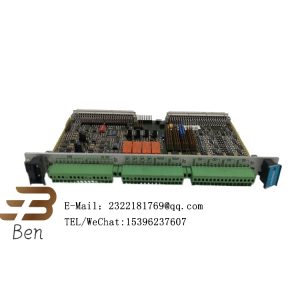

200-560-000-018 200-560-101-015 VM600 IOC4T input/output card
The VM600 IOC4T card offers 16 digital input and 8 digital output channels, which allows the MPC4 card to easily connect to a variety of sensors and actuators. This design ensures the flexibility and wide applicability of the system.
KEY FEATURES AND BENEFITS
• From the Vibro-Meter® product line
• Signal interface card with 4 dynamic signal
inputs and 2 tachometer (speed) inputs, for the
MPC4 machinery protection card
• Screw-terminal connectors (48 terminals) for all
input/output connections
• Contains 4 relays which can be attributed to
alarm signals, under software control
• 32 fully-programmable open-collector outputs
(jumper selectable) to IRC4 and RLC16 relay
cards
• Buffered “raw” sensor signals and analog
output signals (voltage or current) for vibration
channels
• EMI protection for all inputs and outputs
• Live insertion and removal of cards
(hot-swappable)
• Available in “standard” and “separate circuits”
