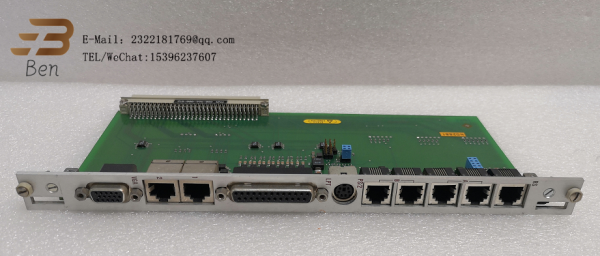

200-566-000-012 200-566-101-012 VM600 IOCN input/output card
200-566-000-012 200-566-101-012 VM600 IOCN input/output card
The Vibro-meter VM600 is an advanced vibration monitoring and protection system primarily used in complex and critical rotating machinery. The system is modular, extensible and configurable.
The VM600 system consists of several models and modules, each with unique capabilities. For example, the CMC16 module has 16 dynamic channels and 4 speed channels, and each dynamic channel and each dual channel can have up to 20 processing outputs (12 per xmc 16). It supports asynchronous (fixed frequency) or synchronous (sequential tracking) sampling, simultaneous data acquisition on all channels, and uses 24-bit data acquisition technology to provide high signal-to-noise ratio data processing and high-resolution FFT up to 6400 lines every 500 milliseconds
Vibro-meter VM600 Vibration monitoring and protection system parameter specification
Environmental requirement
temperature
– Operation: 0 to 70 °C (32 to 158 °F)
– Storage: −40 to 85 °C (−40 to 185 °F)
Humidity (according to IEC 60068-2-30) : 5 to 95% non-condensing
Vibration (according to IEC 60068-2-6) : 0 to 55 Hz, below resonance peak and 0.35 mm above 2 g peak, 6 hours/axis
Impact (according to IEC 60068-2-27) : 6g peak, 11ms, half-sinusoidal pulse, 3 impact/axis
Drop test (according to IEC 60068-2-31) : 30 ° Angle fall
Mean time between failures (according to MIL-HDBK-217F) : > 40,000 hours at 70°C (158°F)
Conformal coatings: Power circuits for additional environments protect against chemicals, dust, moisture, and jiduan temperatures
VM600 CMC16 Status monitoring card, VM600 IOC4T 200-560-000-111 200-560-101-017 input/output card, Vibro-meter VM600 RPS6U 200-582-600-013 Power module, VM600 IOC16T input/output card, VM600 ABE040/VM600 ABE042 System rack, VM600 XMV16/VM600 XIO16T Extended vibration monitoring card, VM600 IOCN/VM600 CPUM CPU card and input/output card, VM600 RLC16 relay card, VM600 MPC4 machine monitoring and protection,
Dynamic signal input
Number of input signals: 4 signals per MPC4 card
DC range: 0 to +20 V or 0 to −20 V
AC range: ± 10 V (Max)
Common mode voltage range: −50 to +50 V
CMRR: > 60 dB at 50 Hz
Crosstalk: −72 dB
Input impedance: 200 kΩ
Current input range
– DC signal: 0 to 25 mA
– AC signal: ± 8 mA (Max)
Analog ac frequency band
(no integration) : 0.1 Hz to 10 kHz
Analog ac frequency band
(Integration) : 2.5 Hz to 10 kHz
Analog frequency bands vs
Other cards and buffered AC output: DC to 60 kHz (−3 dB)
Current detection resistance: 324.5Ω
Processing option
bandwidth
Filter options: high pass, Low pass or band pass
LP/ HP passband ratio: 500 (Max)
Fluctuation: ± 0.3dB
Slope: 6 to 60 dB/ octave (software configurable)
External passband attenuation: > 50 dB
Amplitude accuracy: ± 1% full scale
Linear error: < ± 1%
Equivalent input noise: < 200 µV RMS
Environmental condition
operation
– Temperature: −25 to +65 °C (−13 to +149 °F)
– Humidity: 0 to 90% non-condensing
store
– Temperature: −40 to +85 °C (−40 to +185 °F)
– Humidity: 0 to 95% non-condensing
