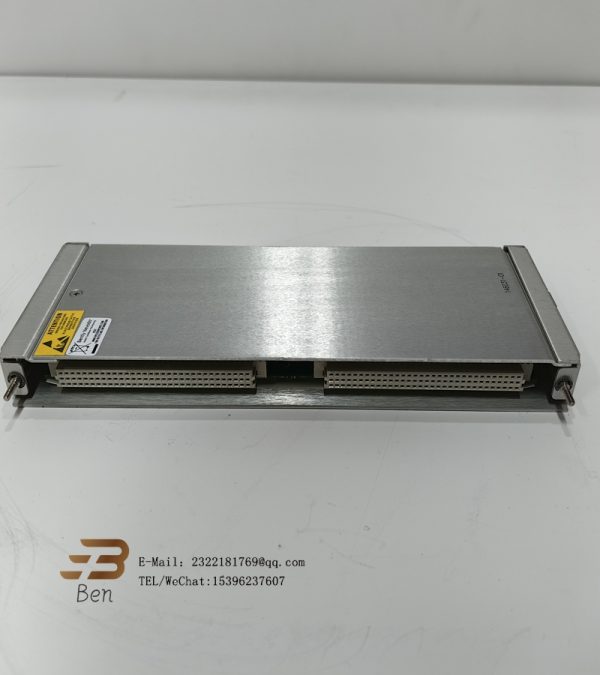

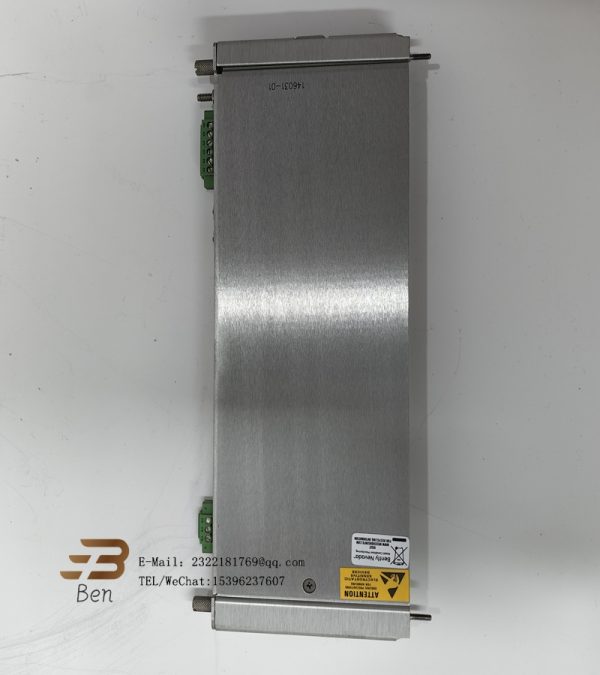

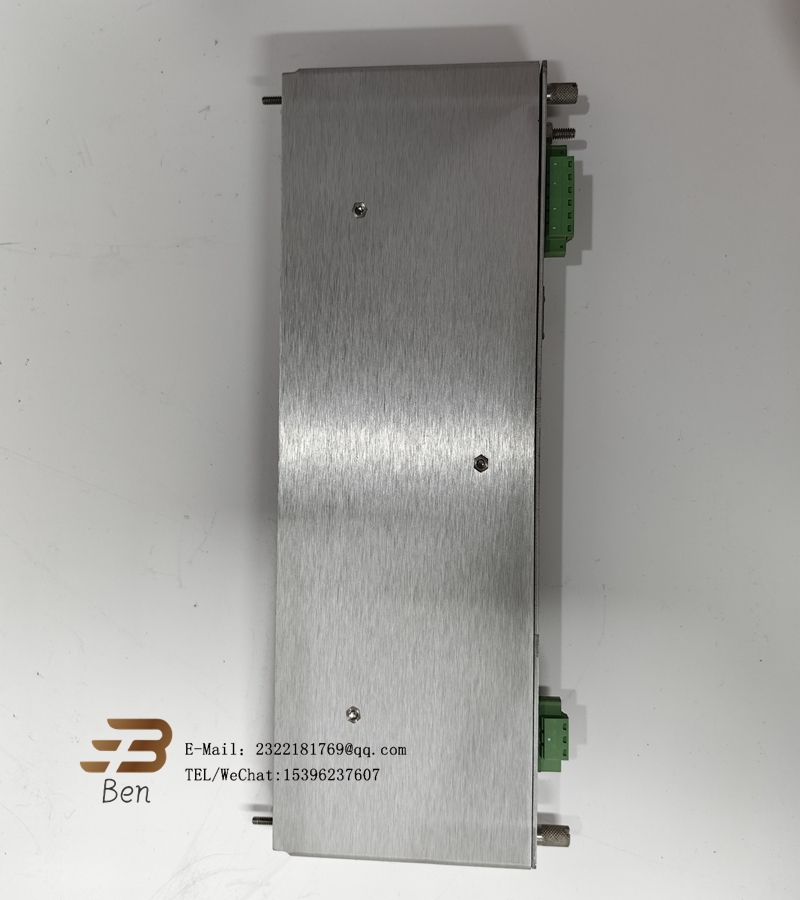

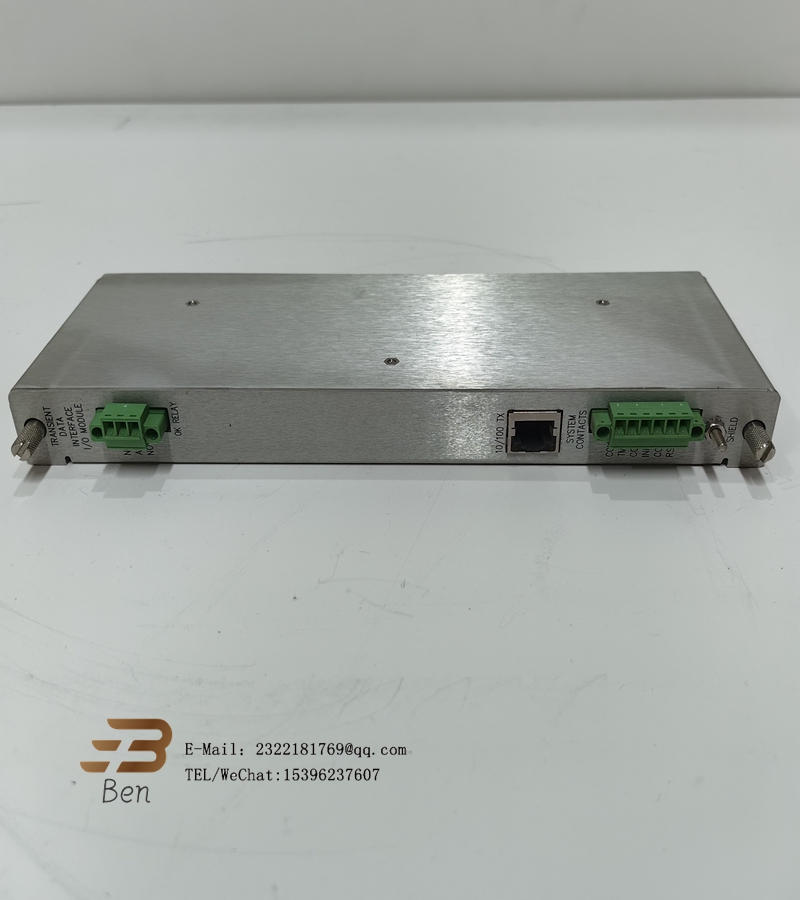

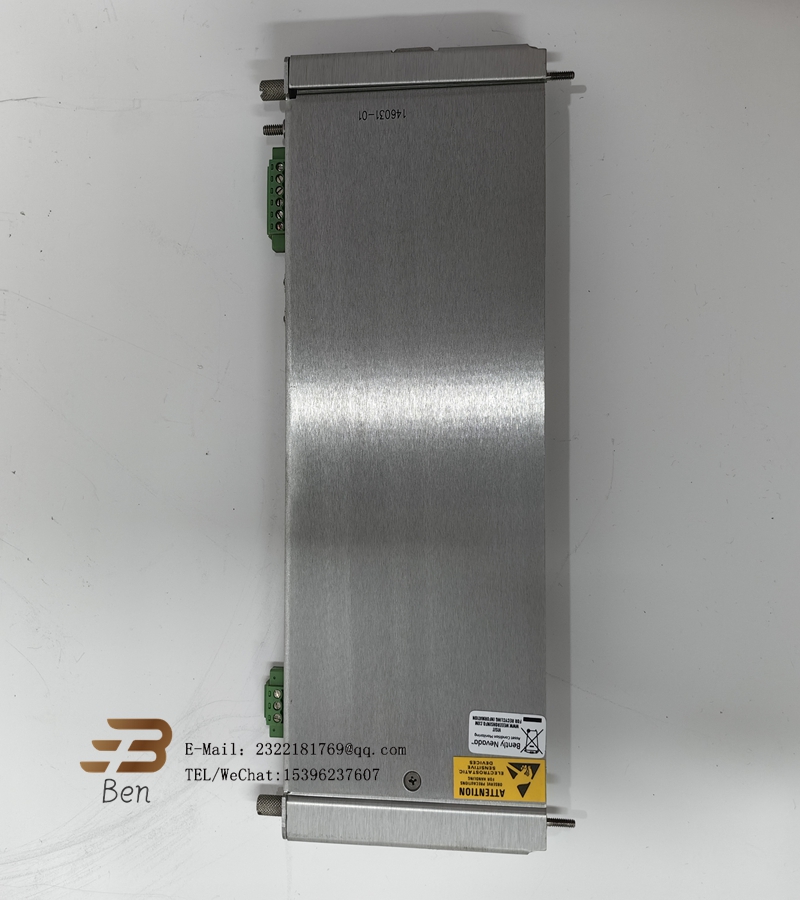

3500-22M 146031-01 Transient Data Interface (TDI) I/O module

3500-22M 146031-01 Transient Data Interface (TDI) I/O module

The 3500-22M 146031-01 is a transient Data interface (TDI) I/O module developed by Bently Nevada as part of the 3500 series. The module is mainly used to connect the 3500 monitoring System and related software (such as System 1 status monitoring and diagnosis software and 3500 system configuration software) to achieve data collection, processing and transmission.

Get A Quote
Contact Us

3500-22M 146031-01 Transient Data Interface (TDI) I/O module

The 3500-22M 146031-01 is a transient Data interface (TDI) I/O module developed by Bently Nevada as part of the 3500 series. The module is mainly used to connect the 3500 monitoring System and related software (such as System 1 status monitoring and diagnosis software and 3500 system configuration software) to achieve data collection, processing and transmission.
Specifically, the 3500-22M 146031-01 module has the following features:
High-speed data acquisition: Up to 32 analog channels with a sampling rate of up to 1.25 MS/s are supported to capture rapid changes and transient events during device operation.
Multichannel I/O: Up to 32 10 MHz digital I/O lines and up to 4 analog output channels are available with an update rate of 2.8 MS/s.
Network connection function: Built-in four-port Ethernet switch, supporting VLAN, Layer 3 switching, static routing, firewall and other functions.
Compatibility: Can be used with M-series displays such as 3500/40m, 3500/42M, etc., running in the RIM slot of the 3500 rack.
Widely used: applicable to the field of industrial automation, it can monitor the vibration, temperature, pressure and other transient data of mechanical equipment, and provide detailed and accurate information for the condition monitoring and fault diagnosis of equipment.
In summary, 3500-22M 146031-01 is a high-performance transient data interface I/O module, which is widely used in the production process requiring high precision, real-time monitoring and control, providing important support for improving production efficiency and product quality.
