Digital synchronous device
3BHB006715R0221 SYN 5202a-Z V221 Digital synchronous device
3BHB006715R0221 SYN 5202a-Z V221 Digital synchronous device

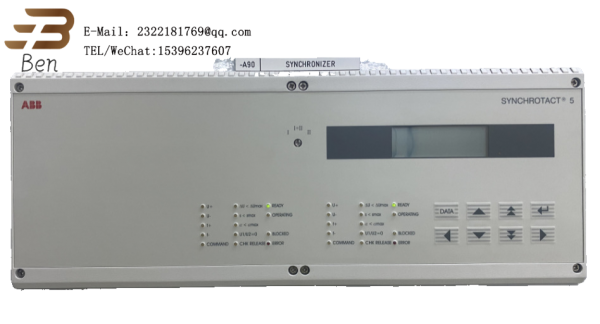

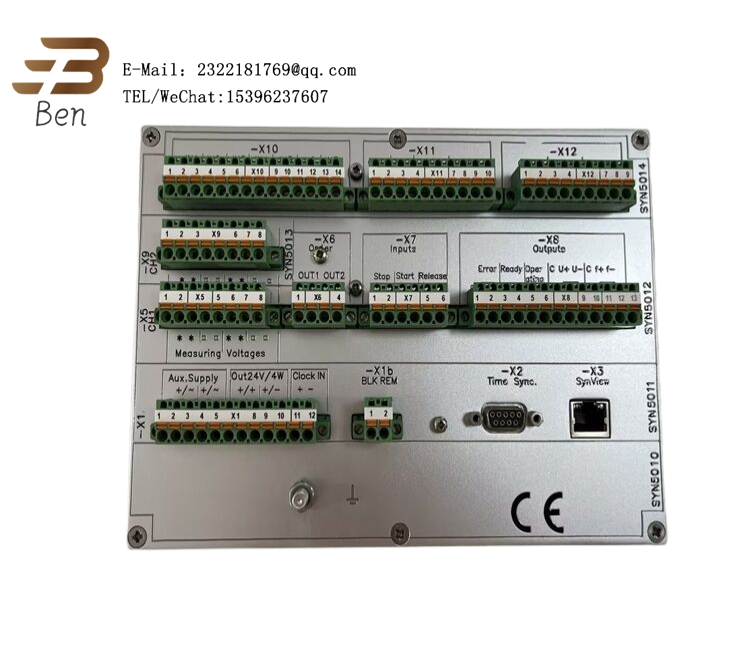

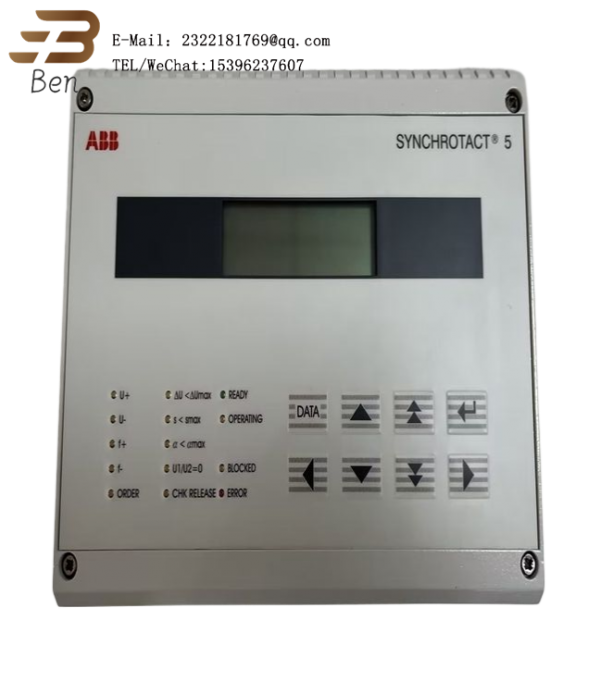

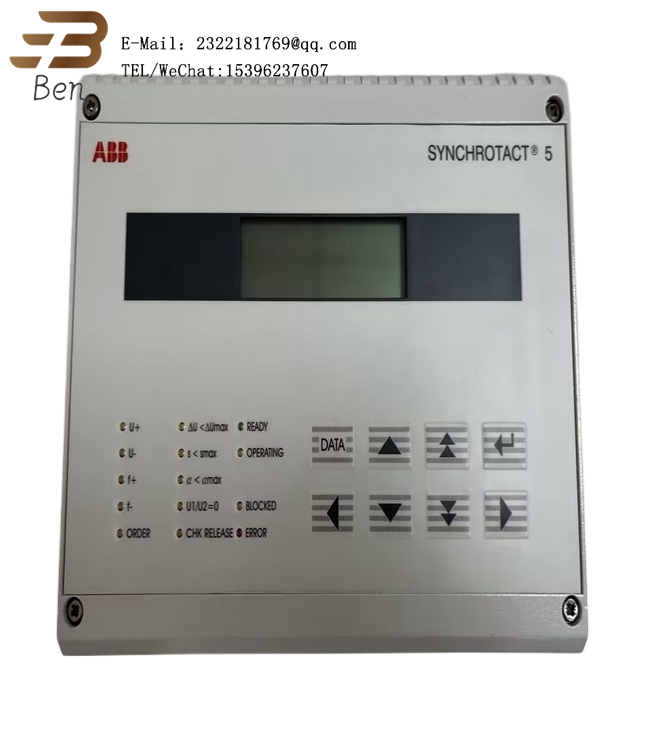

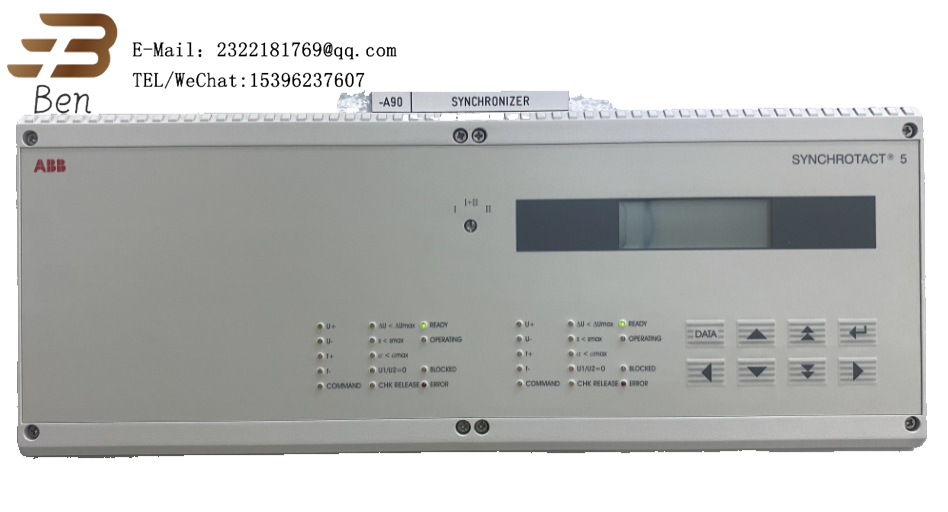

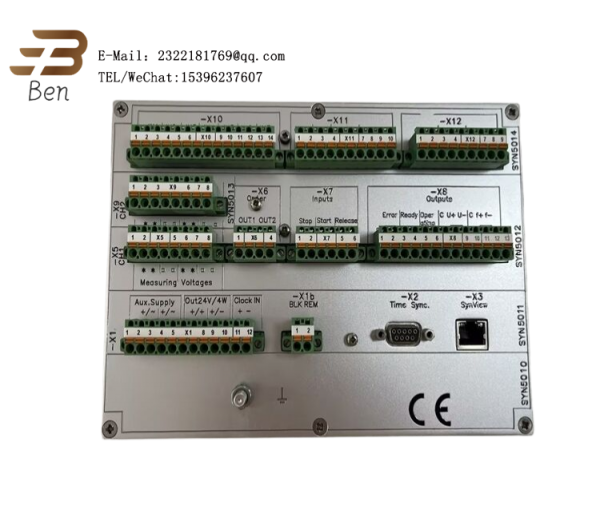

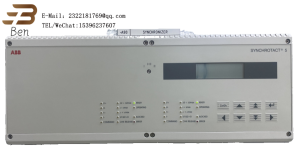

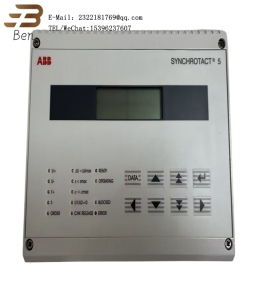

The SYNCHROTACT 5 digital synchronization device is used for automatic synchronization and juxtaposition between generators and the grid, as well as for juxtaposition between already synchronized grids. The system frequency for this device is 50/60Hz or 16 2/3 Hz.
SYN 5202 digital synchronous device includes two independent channels composed of different hardware and software, which further improves the security of the synchronous device and can prevent non-synchronous closing to the greatest extent.
The whole automatic juxtaposition process can be divided into the following four basic functional modules:
1. Measurement;
2. Voltage matching and frequency matching;
3. Monitoring of parallel conditions;
4. Parallel command generation.
measure
The following measurements are based on two single-phase voltages:
Voltage U1, U2
U1 is the reference voltage, for example: line voltage;
U2 is a adjustable voltage, e.g., generator voltage.
Frequency f1, f2
f1 is the reference frequency;
f2 is an adjustable frequency.
Voltage difference ∆U
∆U = |U1| – |U2|
∆U > 0 indicates that the adjustable voltage is lower than the reference current;
∆U < 0 indicates that the adjustable voltage is higher than the reference voltage.
For installation, the SYNCHROTACT 5 synchronous device offers three test functions:
1. TEST ton (parallel time test) : switch on the circuit breaker, determine the parallel time, and adjust the measured voltage;
2. TEST U-Match: Adjust the voltage of the voltage matching unit to the voltage regulator;
3. TEST f-Match (frequency matching test) : Adjust the frequency of the frequency matching device to the frequency of the governor;
The major features of the AC 800M are:
• High performance and large application memory.
• Extensive availability.
• CPU redundancy
(PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891).
• AC 800M High Safety Integrity Level 2 certified using PM865/SM810/SM811 or PM867/SM812.
• AC 800M High Safety Integrity Level 3 certified using PM865/SM811 or PM867/SM812.
• Built-in redundant Ethernet channels.
• Built-in RS-232C channels.
• Sectioned CEX-Bus using a pair of BC810 / BC820.
• Quick and simple fault-finding with the aid of LEDs on each unit / channel.
• Built-in battery back-up of memory (except for PM891).
• External battery back-up.
• Use of industry standard power supply voltage – 24V d.c.
• Easy mounting on standard DIN rail.
• IP20 Class protection without the requirement for enclosures.
• Incorporation of a wide variety of communication possibilities.
• Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP).
• Support for PROFIBUS DP fieldbus.
• Support for FOUNDATION Fieldbus.
• Support for Advant Fieldbus 100.
• Support for Modbus TCP
