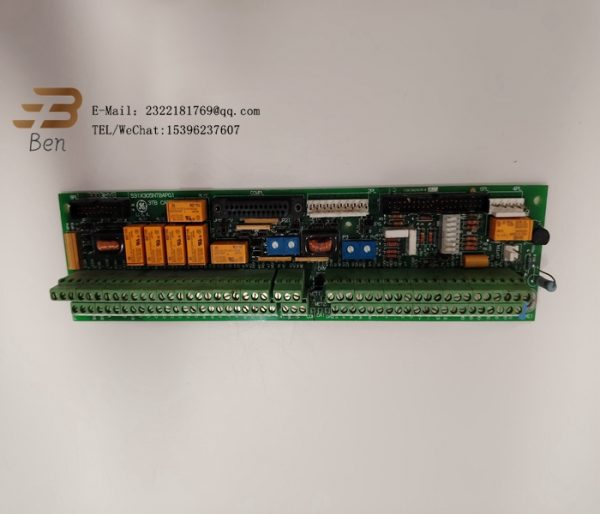

531X305NTBAPG NTB/3TB Terminal Board

531X305NTBAPG NTB/3TB Terminal Board

The NTB/3TB terminal board, an important component developed by GE (General Electric) under the EX2000 excitation system, 531X305NTBAPG provides +5 V dc and 15 V dc regulated voltage, with a current capacity of 300 mA each. Includes differential A-quad-B encoder interface with marked channels for connection to the driver.

Get A Quote
Contact Us

531X305NTBAPG NTB/3TB Terminal Board

531X305NTBAPG

The NTB/3TB terminal board, an important component developed by GE (General Electric) under the EX2000 excitation system, 531X305NTBAPG provides +5 V dc and 15 V dc regulated voltage, with a current capacity of 300 mA each. Includes differential A-quad-B encoder interface with marked channels for connection to the driver.

531X305NTBAPG Technical Specifications

Model Number:                531X305NTBAPG
OEM:                                  GE Motors and Industrial Systems
Instruction Manual:        GEI-100020B (Supersedes GEI-100020A)
Product Type:                    Terminal Board
Offers +5 V dc and 15 V dc regulated voltages, each with a current capacity of 300 mA.
Offers unregulated DC 24 V, 500 mA current capacity, and 120 V AC 0.5 A current capacity.

General Electric product recommendations:531X301DCCAFG2,531X303MCPBDG1,531X306LCCBAG3,531X305NTBANG1,531X304IBDARG1,531X307LTBAFG1,531X305NTBAJG1,531X303MCPARG1,531X121PCRALG1,531X121PCRALG1,531X305NTBAPG1,531X307LTBAJG1,531X304IBDAMG1,531X305NTBANG1,531X303MCPBBG1,531X307LTBAHG1,531X304IBDAMG1,531X309SPCAJG1
