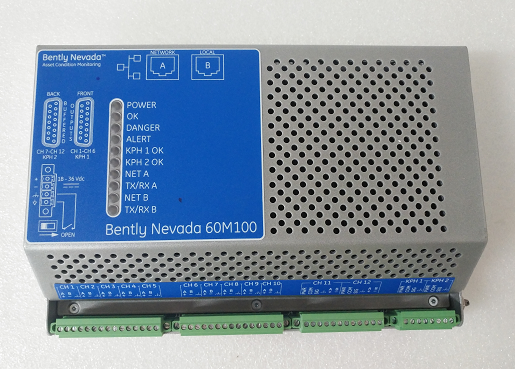

Bentley Nevada 60M100-00 Vibration monitoring and protection module
Vibration monitoring and fault diagnosis technology is widely used in the metallurgical industry. The implementation of vibration monitoring and fault diagnosis technology needs to rely on a metallurgical equipment fault detection system, which is described below.
1、Basic principle
In the normal operation of actual metallurgical electromechanical equipment, there will be a certain amount of vibration and also a strong noise. If a part of the metallurgical electromechanical equipment fails in its work, the corresponding vibration situation and the size of the noise will change with a series of changes, but such changes are weak and cannot be detected by human ability alone. Therefore, it is necessary to use special monitoring devices to reasonably extract the weak changes and transmit the obtained data information to the computer system, after the integration of the signal processing, presenting the corresponding image, the staff according to the image to judge the analysis of metallurgical electromechanical equipment working state, and can also find the corresponding fault location.
Xiamen Xiongba Electronic Commerce Co. LTD
FROM：Mr. Wei
E-Mail：2322181769@qq.com
TEL/WeChat:15396237607
The Bentley 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with the frame 3500/05, the power supply 3500/15, the frame interface module 3500/22M.
bently 3500 Bentley power supply high voltage AC 220V, spare parts as follows
127610-01 AC power supply module
125840-01 High voltage AC power input module (PIM)
125840-02 Low voltage AC power input module (PIM)
129486-01 High voltage DC power supply module
129478-01 High Voltage DC Power Input Module (PIM)
133292-01 Low Voltage DC Power Supply Module
133300-01 Low Voltage DC Power Input Module (PIM)
01720025 Spare fuses (two types of AC PIM and high voltage DC PIM)
01720045 Spare fuse (low voltage DC PIM)
Bently Nevada Product Structure Chart:
1. Monitoring system
1. Continuous online monitoring system
A. Series 3500
B. Series 3300
C. Series 1900
D. Dapapt Wind fan online monitoring
2. Inspect the online monitoring system
A. Inspection and monitoring
B.ssential Insight.Mesh Wireless solution
C. nomAlert Motor abnormal detection
Two, sensor
1. Eddy current sensor
2. Speed acceleration sensor
3. Pressure sensor
4. Shell expansion and valve position sensor
5. Optical sensor
Three, portable diagnostic instrument
1. Portable fault diagnosis equipment ADRE system: ADRE 408 DSPi hardware
B. Portable Data acquisition and analyzer: SCOUT100/140
Iv. Test and calibrate equipment
Eddy current probe calibrator :TK-3 state monitoring calibrator
Other test calibration devices: Testers to test TIM using Snapshot
High precision micrometer
Rotor test stand
Velomitor power supply module key trust signal multiplier/detractor torsional oscillator regulator oscilloscope excuse module
If you need to inquire or purchase ,please send the product models to my email or call me directly .
Contact detail:Mobile/ WeChat/ WhatsApp:+86-15396237607
E-mail:2322181769@qq.com
QQ: 2322181769
We do other brands: ABB, Allen-Bradley, Schneider, GE (General electric), Westinghouse, FANUC, Bently, KUKA, Foxboro, Triconex, Honwell, YASKAWA, etc., if you need, you can contact me, look forward to your consultation.
