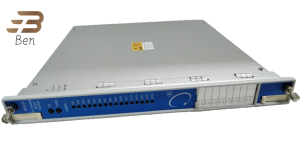

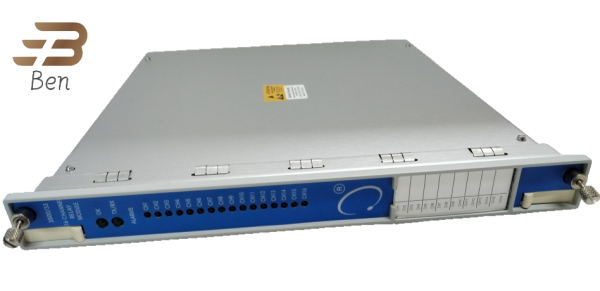

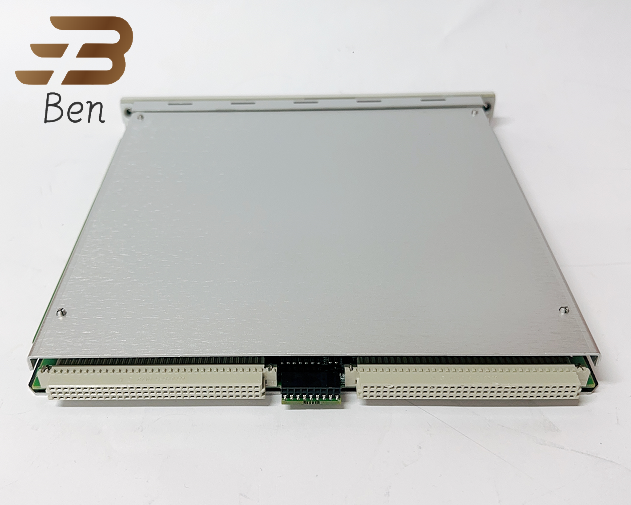

Bently 3500/33 149986-01 Spare 16-Channel Relay Control Module

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Xiamen Xiongba Electronic Commerce Co. LTD
FROM:Mr. Wei
E-Mail:2322181769@qq.com
TEL/WeChat:15396237607

Get A Quote
Contact Us

Bently 3500/33 149986-01 Spare 16-Channel Relay Control Module

Bently 3500/33 149986-01 Spare 16-Channel Relay Control Module

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic. Each relay of the module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic and may use the following: l Alarming inputs (alert and danger statuses) l Not-OK l Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack



149986-01 Spare 16-Channel Relay Control Module

149992-01 Spare 16-Channel Relay Output Module

149992-02 Spare 16-Channel Failsafe Relay Output Module

149992-03 Spare 16-Channel Low Current Relay Output Module

149992-04 Spare 16-Channel Low Current Failsafe Relay Output Module

The 3500/33 16-Channel Relay Module requires the 3500 Rack Config, version 3.3 or later. l The 3500/33 requires the 3500 Data Acquisition Software, version 2.40 or later. l The 3500/33 16-Channel Relay Module requires the 3500 Data Display Software, version 1.40 or later. l When ordered with the multiple approvals option (02), the 3500 monitor is certified to Zone 2 standards, including ATEX and North American zones. l The Zone 2 standards specify increased spacing requirements at higher voltages. The 3500/33 16-Channel Relay Module does not meet these spacing requirements. Thus, the module ordered with the multiple approvals option is limited to a lower voltage than those with the other approvals options. l Using higher voltages violates the hazardous area certificates associated with the multiple approvals option. l The North American Division 2 standards associated with the CSA-only approvals option (-01) have been de-rated to 30 Vrms to comply with 61010-1 type test requirements. l If the 3500/3316-Channel Relay Module is part of a functional safety (SIL) system, the functional safety certificate requires the restricted voltage. Higher voltages are not allowed for functional safety (SIL) systems



The Bentley 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with the frame 3500/05, the power supply 3500/15, the frame interface module 3500/22M.
bently 3500 Bentley power supply high voltage AC 220V, spare parts as follows
127610-01 AC power supply module
125840-01 High voltage AC power input module (PIM)
125840-02 Low voltage AC power input module (PIM)
129486-01 High voltage DC power supply module
129478-01 High Voltage DC Power Input Module (PIM)
133292-01 Low Voltage DC Power Supply Module
133300-01 Low Voltage DC Power Input Module (PIM)
01720025 Spare fuses (two types of AC PIM and high voltage DC PIM)
01720045 Spare fuse (low voltage DC PIM)
129767-01 Power Supply Operation and Maintenance Manual
The Bentley power supplies bently 3500/15 are available in the following order information and model numbers
3500/15-AXX-BXX-CXX Description of options
A: Power supply type (upper slot)
01 Low voltage AC (85-132 Vac rms)
02 High voltage AC (175-264 Vac rms)
03 High voltage DC (88-140 Vdc)
04 Low voltage DC (20-30 Vdc)
05 Universal AC power supply (85-264 Vac rms) (new)
B: Power supply type (lower slot)
00 No power supply (only for use where a single power supply is required)
01 Low voltage AC (85-132 Vac rms)
02 High voltage AC (175-264 Vac rms)
03 High voltage DC (88-140 Vdc)
04 Low voltage DC (20-30 Vdc)
05 Universal AC power supply (85-264 Vac rms) (new)
C: Approved unit options
00 None
01 CSA/NRTL/C
02 ATEX/IECEx/CSA (Class 1, Zone 2)
CN China
The specific models are as follows
3500/15 (front panel 127610-01, rear back panel 125840-01)
3500/15-02-02-00, upper slot & lower slot both fitted, so dual power supply
3500/15-02-00-00, upper slots fitted, lower slots not fitted, so single power supply
3500/15-05-05-00, both upper and lower slots, so dual power supply
The following are the upgraded 3500/15 universal AC power modules:
3500/15 (front panel 106M1079-01, rear back panel 106M1081-01)
3500/15-05-05-00, both upper slots & lower slots fitted, so a dual power supply set
3500/15-05-00-00, upper slot fitted, lower slot not fitted, so single power supply set



Bently Nevada product structure diagram.
I. Monitoring System
1. Continuous online monitoring system
A.3500 Series
B.3300 Series
C.1900 Series
D.ADAPT Wind Wind turbine online monitoring
2. Patrol online monitoring system
A. Inspection and monitoring
B.Essential Insight.Mesh wireless solution
C.AnomAlert motor anomaly detection
II.Sensor
1.Eddy current sensor
2.Velocity acceleration sensor
3. Pressure sensors
4. Housing expansion and valve position sensors
5. Optical sensors
Portable diagnostic instruments
1. Portable diagnostic equipment ADRE system: ADRE 408 DSPi hardware
Peal. Portable data acquisition and analyser: SCOUT100/140
IV. Test and calibration equipment
Eddy current probe calibrator:TK-3 condition monitoring calibrator
Other test and calibration equipment: Testers for TIM testing using Snapshot
High accuracy micrometer
Rotor test benches
Velomitor power supply module keyed to signal multiplier/divider torsional vibration signal conditioner oscilloscope excuse module

3300/50-02-01-00-00
3500/93
330130-080-01-00
125800-01
330103-05-10-10-02-05
330104-00-04-10-02-05
330104-00-11-10-02-05
3500/15E
3500/15
3500/61
3500/93
330130-040-00-00
3300/46
3500/45
330878-90-00
3500/42M 176449-02
330930-040-01-00
330104-00-13-10-02-05
330104-00-05-10-02-00
991-01-XX-01-01
3300/35 3300/35-13-01-01-00-02
3300/20 3300/20-13-03-01-00-00
3300/50 3300/50-01-01-00-00
3300/16 3300/16-15-01-03-00-00-00
