The GE 151X1235BC01SA01 is a ruggedized managed Ethernet switch from GE’s RXi Industrial Networking series, designed for mission-critical automation networks. This Layer 3 switch features 16 Gigabit ports (12×10/100/1000BASE-T + 4xSFP) with <3μs latency, making it ideal for real-time control systems in harsh environments. The 151X1235BC01SA01 supports parallel redundancy protocols including HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol), achieving 99.999% network availability in power generation and transportation applications.
As part of GE’s Industrial Connectivity Platform, this switch integrates seamlessly with Proficy SCADA and Mark VIe turbine control systems. Its -40°C to +75°C operating range with conformal coating ensures reliable operation in offshore oil platforms and steel mills. The built-in cyber security suite complies with NERC CIP and IEC 62443 standards, providing automated threat detection for industrial IoT deployments.

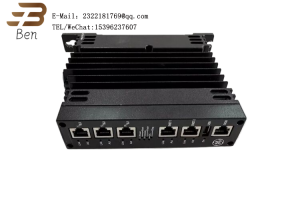

GE 151X1235BC01SA01 RXi Ethernet switch for industrial networks
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 151X1235BC01SA01 |
| Manufacturer | GE |
| Product Type | Managed Industrial Ethernet Switch |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | 4094 IEEE 802.1Q |
| Redundancy Protocols | HSR, PRP, RSTP, MSTP |
| Power Input | 24 VDC (18-32V) or 100-240 VAC |
| Operating Temperature | -40°C to +75°C |
| Humidity Resistance | 5% to 95% (non-condensing) |
| Shock/Vibration | 50g/5g (IEC 60068-2-27/6) |
| Certifications | UL 60950, ATEX Zone 2, DNV-GL |
| Dimensions | 440 x 44 x 330 mm (WxHxD) |
| Weight | 6.2 kg |
Key Features and Advantages:
Network resilience: The 151X1235BC01SA01 achieves zero-packet-loss network recovery in <10ms through dual-active HSR ring architecture. Its dynamic traffic prioritization (IEEE 802.1p) ensures deterministic performance for PROFINET IRT and EtherNet/IP CIP Motion applications.
Cybersecurity protection: Integrated deep packet inspection (DPI) engine blocks unauthorized access attempts. The hardware-based secure boot mechanism prevents firmware tampering, while role-based access control (RBAC) meets NIST 800-82 rev3 requirements.
Maintenance optimization: Front-panel LCD displays real-time network health metrics including CRC error counts and latency distribution. The hot-swappable power supply modules (P/N PS-24VDC-RX) enable <5-minute replacement without system shutdown.
Application Areas:
The GE 151X1235BC01SA01 excels in:
- Smart Grids: Substation automation with IEC 61850-3 compliance
- Rail Transportation: Onboard train control networks (EN 50155 certified)
- Oil & Gas: Offshore drilling platform communication backbones
- Discrete Manufacturing: Robotics cell networks requiring <5μs jitter
In hydroelectric plants, this switch maintains synchronization between turbine governors and excitation systems during grid disturbances. Automotive factories leverage its IGMP snooping capabilities for seamless vision system integration.
