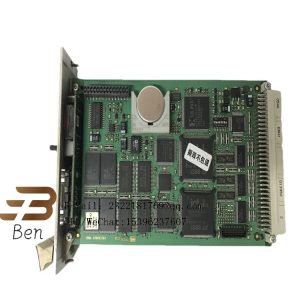

HIMax F8650E,F8650X,F8652X Central module

HIMA manufactures central control modules for core processing in safety instrumentation systems (SIS). Examples include the F8650E, F8650X, F8652X Central module, which has a dual-processor design, 32-bit architecture, 25MHz clock rate, and memory configuration including flash EPROM and SRAM.

Get A Quote
Contact Us

HIMax F8650EF8650XF8652X Central module

HIMA manufactures central control modules for core processing in safety instrumentation systems (SIS). Examples include the F8650E, F8650X, F8652X Central module, which has a dual-processor design, 32-bit architecture, 25MHz clock rate, and memory configuration including flash EPROM and SRAM.

Core architecture and hardware parameters

1: processor configuration ‌ : dual Intel 386EX microprocessor, 32-bit architecture, main frequency 25 MHz, to achieve redundancy and synchronization operation to improve system fault tolerance ‌
2: Storage system ‌ : Integrated 1 MB flash EPROM (operating system), 512 KB user program storage space and 256 KB SRAM data memory, supporting real-time data processing ‌
3: interface capability ‌ : equipped with two RS485 serial ports, some models (such as F8652X) also support Ethernet communication, easy to integrate multiple devices ‌1
