The IS2020RKPSG3A is a powerful and well-designed power module for industrial automation and control systems such as the Mark VI system, providing a reliable guarantee for the normal operation of industrial equipment. It is primarily used in the Mark VI system, one of the latest Speedtronic steam or gas turbine management systems created and released by GE. Widely used in industrial automation and control systems, such as oil and gas, chemical, power and other industries, to provide safety protection for equipment in dangerous areas.
Technical specifications:
Rated output power: 400W.
Input voltage rating: 125 Vdc.

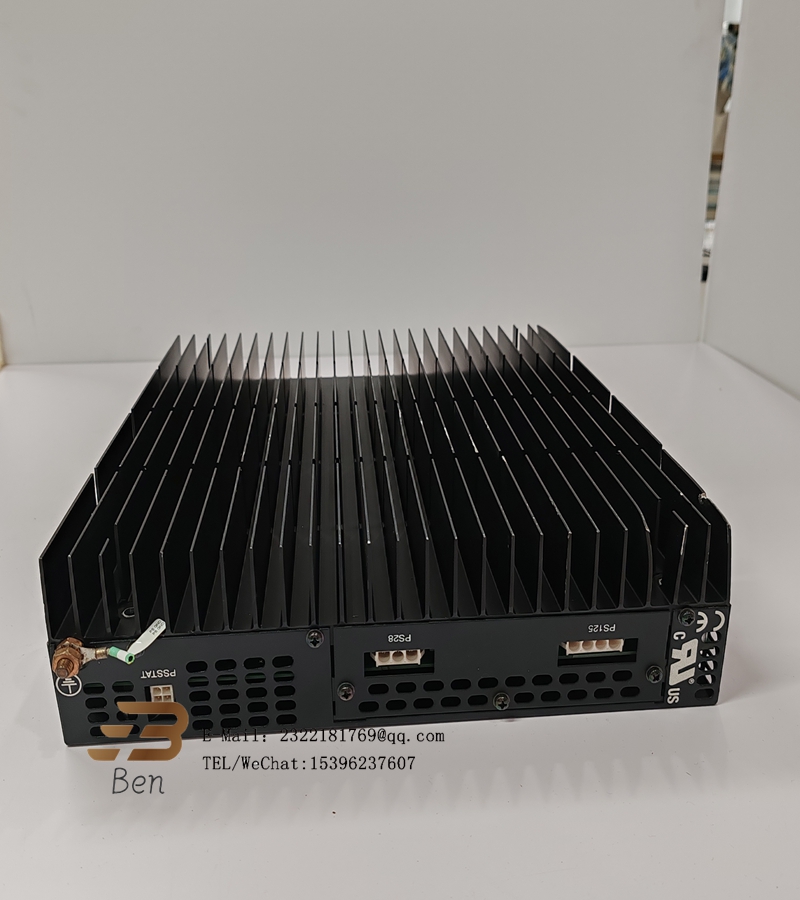

Output: Has a status ID output, a remote +28V PSA output, and five additional +28V PSA outputs.
Protection level: IP66 (some data mention IP67).
Operating temperature range: -40°C to +70°C.
Compliance with standards: IEC 61508 SIL2, ATEX, IECEx, etc.
Design and function:
The front panel is equipped with a toggle switch, which is the only user control on the module. Users can use this toggle switch to reset module faults for easy troubleshooting and module maintenance.
The panel is equipped with three LED indicators (green, red and yellow) to indicate the module’s operating status and fault information.

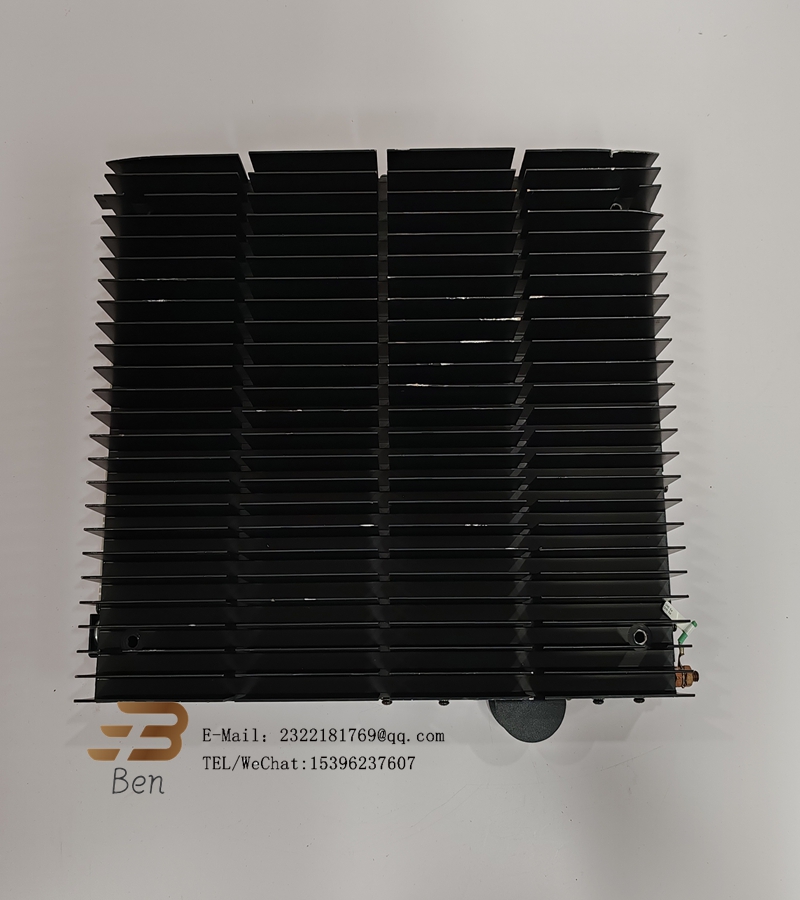

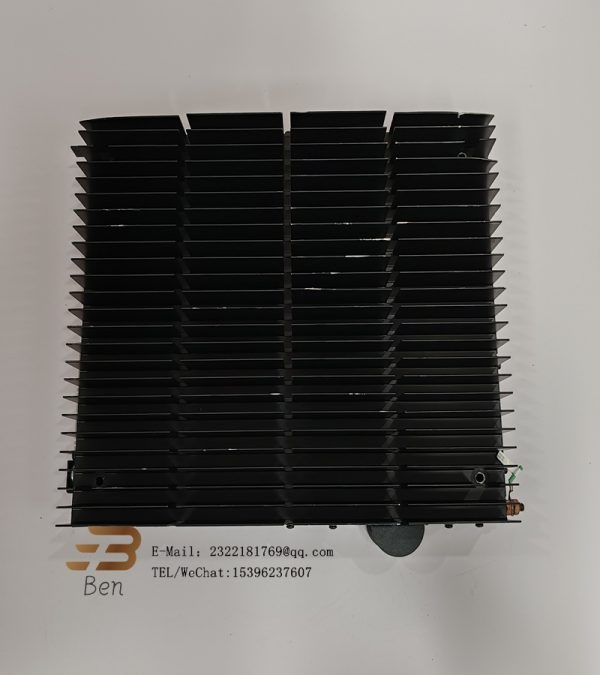

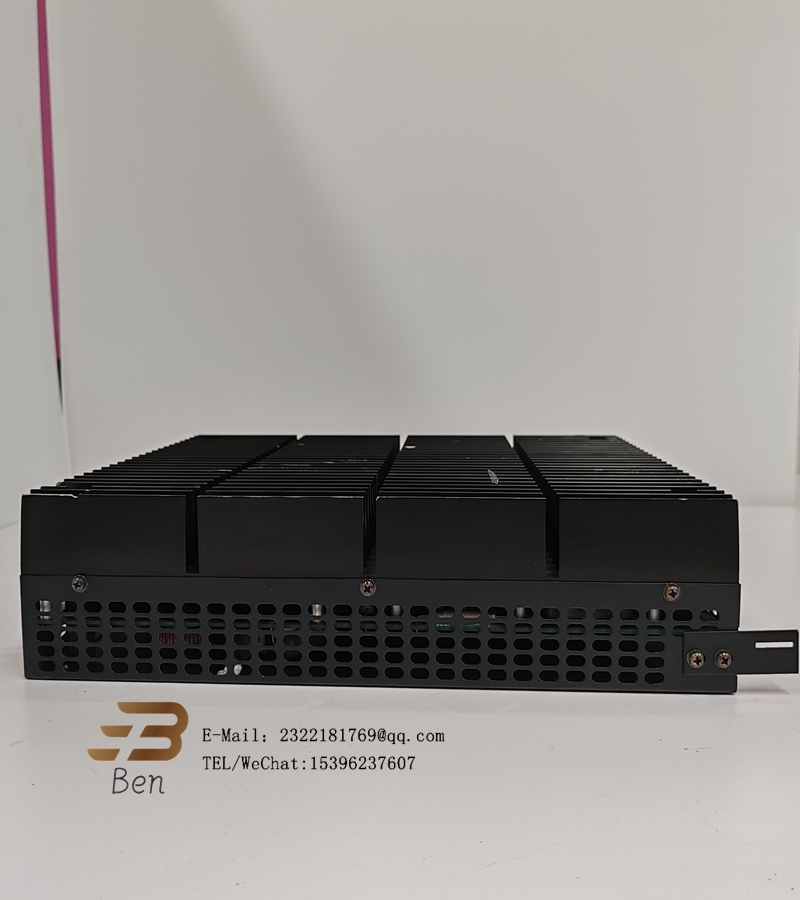

The sides of the fuselage are designed with multiple metal fins, which act as cooling components to help the module maintain the appropriate temperature during continuous operation.
Installation and configuration:
The module is designed to be mounted to the right side of the VME control and interface rack.

The IS2020RKPSG3A is a power module designed for use in industrial automation and control systems, particularly in connection with GE’s Mark VI system. The following are the application areas of IS2020RKPSG3A:
Power industry:
Gas and steam turbine control systems provide stable power support for these large power plants.
Monitoring and control systems for power plants and the grid to ensure the stability and security of the power supply.
Oil and Gas industry:
Control systems for oil and gas extraction equipment, which often need to operate in harsh environments, so a reliable power module is essential.
Monitoring and control of pipeline transportation and storage facilities to ensure the safe transportation and storage of oil and gas.
Chemical Industry:
The automatic control system of chemical production line ensures the continuity and safety of the production process.
Storage and transportation facilities for hazardous chemicals need to provide explosion-proof and fire-proof power solutions.
Manufacturing Industry:
The control systems of large manufacturing equipment, such as robots, automated production lines, etc., require a stable power supply.
The core component of the factory automation system provides reliable power support for the entire system.
Water treatment and Environmental Control:
Monitoring and control system of water treatment facilities to ensure the safety and stability of water quality.
Automatic control of environmental protection facilities, such as waste gas treatment, sewage treatment, etc.
Transportation and Transportation:
The control system of railway, subway and other traffic facilities ensures the safety and smooth traffic.
Automated control systems for ships and offshore platforms provide reliable power support for offshore engineering.
Energy and Utilities:
Distributed energy systems, such as solar, wind and other renewable energy grid control.
Monitoring and control systems for utilities such as water supply, heating, etc.
Due to its high reliability, stability and safety, the IS2020RKPSG3A is ideally suited for use in industrial automation and control systems where highly reliable power support is required.
