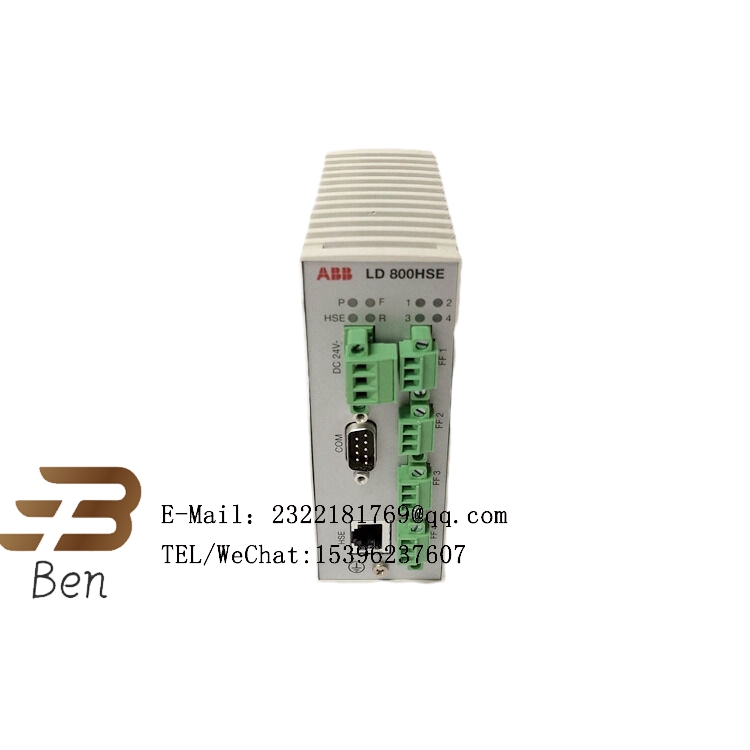

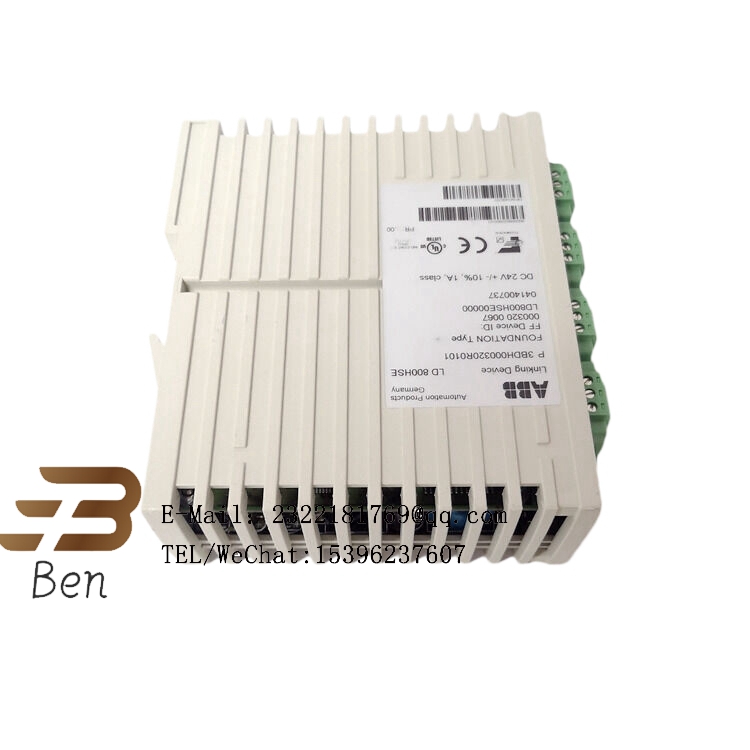

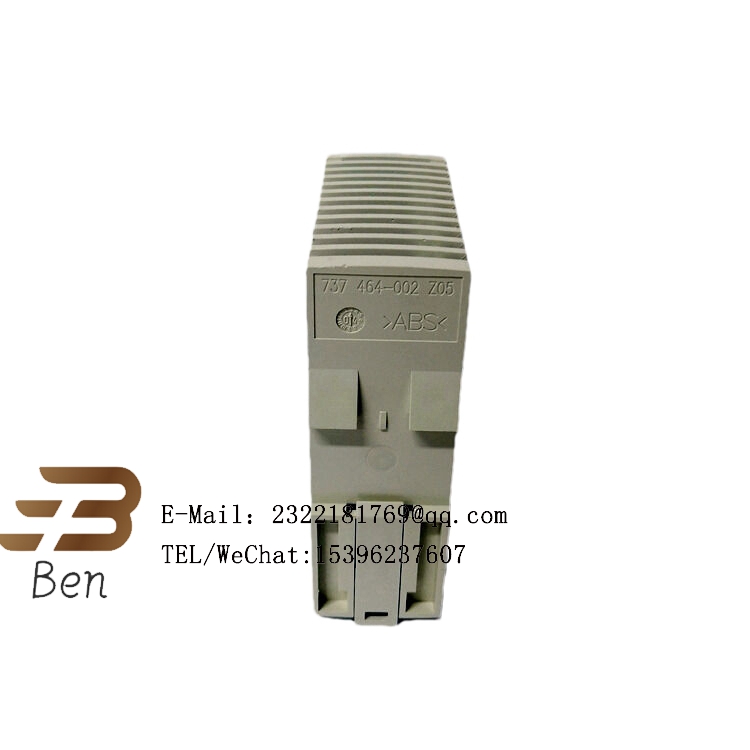

LD800HSE Link device
The LD 800HSE allows access to field equipment integrated into monitoring systems and management consoles via the Foundation Fieldbus (FF). When the H1 ports of two connected devices are connected to one H1 connection, redundant configuration can be implemented. Independent redundancy between primary and secondary linked devices ensures reliable redundant failover and monitoring.
Advantages:
Establish connections between the FF High-Speed Ethernet (HSE) protocol and up to 4 H1 links
Transparent configuration for connecting H1 devices from the host system
Allow access to H1 devices (client/server)
Four independent H1 Link Hosts (LAS)
Publish/Subscribe (H1) (up to 4 subloops)
Copy data linked from one H1 to another H1, or from H1 to HSE
Update firmware by downloading
