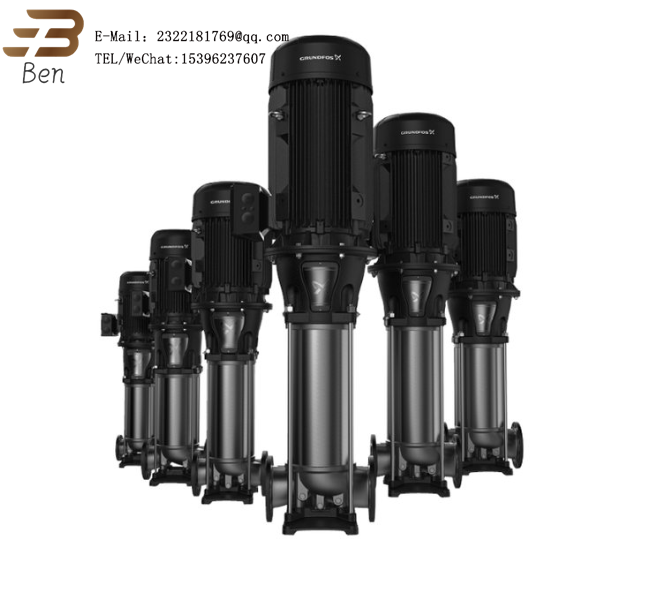

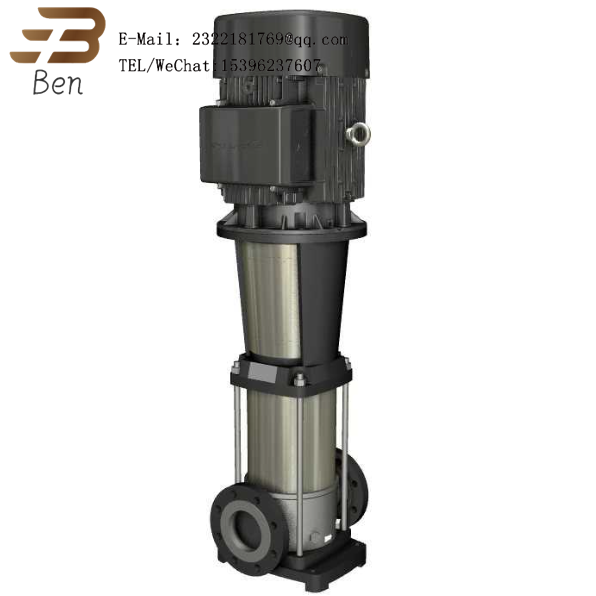

CRN64-3-2 A-F-G-E-HQQE Grundfos Pump A96570202P10945
Grundfos Pump CRN64-3-2 A-F-G-E-HQQE is an efficient and reliable centrifugal pump used in A wide range of industries such as water treatment, chemical, food and beverage.
Application range
- Water treatment industry : as a key part of urban tap water treatment and sewage treatment, to provide reliable water source protection 1.
- chemical industry : because of its excellent corrosion resistance, it can maintain good working condition in chemical reaction to ensure the safety of the production process
- Food and beverage industry : ensure that the effluent water quality is pure and in compliance with relevant food safety standards
CRN64-3-2 A-F-G-E-HQQE Description：
Liquid:
Pumped liquid: Water
Liquid temperature range: -40 .. 120 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³
Technical:
Speed for pump data: 2923 rpm
Rated flow: 64 m³/h
Rated head: 52.8 m
Pump orientation: Vertical
Shaft seal arrangement: Single
Code for shaft seal: HQQE
Approvals on nameplate: CE, EAC,ACS
Curve tolerance: ISO9906:2012 3B
lenntech CRN64-3-2 A-F-G-E-HQQE Grundfos Pump
lenntech CRN64-3-2 A-F-G-E-HQQE Grundfos Pump
Others:
Minimum efficiency index, MEI ≥: 0.7
Net weight: 178 kg
Gross weight: 211 kg
Shipping volume: 0.495 m³
Danish VVS No.: 385918032
