PFCL201C 20KN Pillow Block Tension Meters 3BSE027070R20

ABB’s tension gauges, pressure heads, pressure sensors are widely used in steel, non-ferrous, paper, metal deep processing and other industries. As a supplier of ABB tension gauges, pressure heads and pressure sensors in metallurgy and non-ferrous metals, we have been committed to serving the majority of steel and non-ferrous metal users with the following commonly used models
Millmate Controller 400 MC400 controller, which can supply power to the same Ritec pressure measuring unit, perform data processing of the pressure measuring element signals, and exchange and communicate data with other systems via digital and analogue input/output ports and RS232/485 serial ports or high-speed fieldbus. Dimensions: 380 x 235 x 90 mm, Weight: 5 kg + 7.4 kg, Protection class: IP 20.

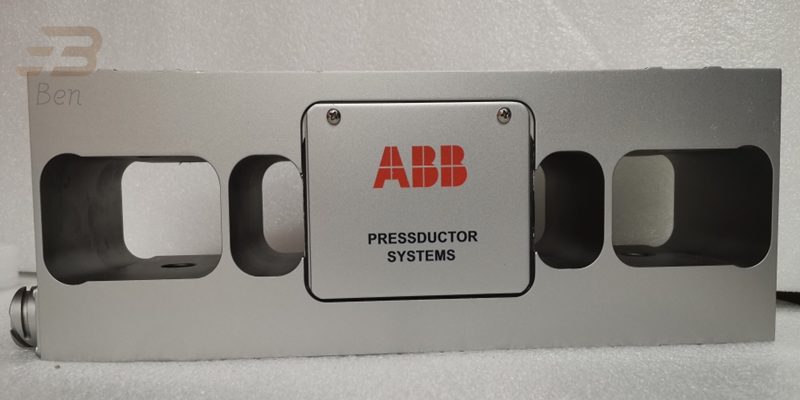

PFCL 201C Pillow block tension gauge with vertical pressure measuring element, with cylindrical plug connection; force measuring range: 5 to 50 KN;
PFCL 201CD/CE Pillow block tension gauge with vertical force measuring element, with cable sealing connector / fixed cable with protective hose, force measuring range: 5 to 50 KN;

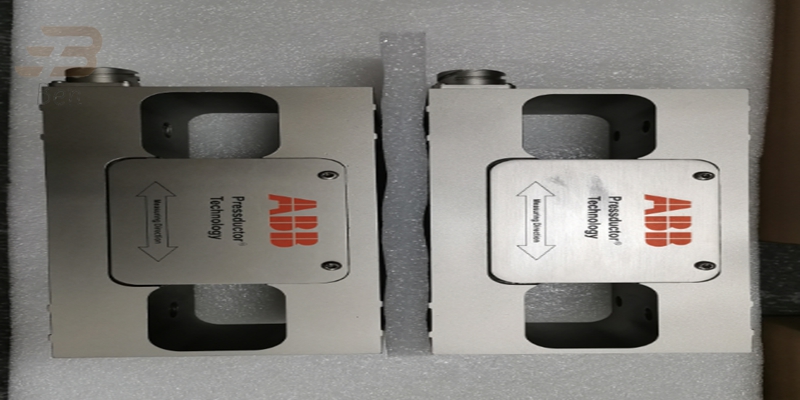

PFTL 101A Pillow Block Tensioner with Ryder Technology horizontal force measuring element, with cylindrical plug connection, force range: 0.2~2KN.
PFTL101AE Pillow block tension gauge with horizontal pressure measuring element , fixed cable connection , measuring range: 0.2~2KN.
PFTL101AER Acid-resistant pillow block tension gauge with horizontal load cell , fixed cable connection , force range: 0.2 to 2KN. For tension measurement on the wet end of paper, protection class IP66/67
PFTL101B Horizontal Pillow Block Tensioner, with Ritec cylindrical plug, force range: 2 to 20KN.

PFTL101BE Pillow block tension gauge horizontal element , fixed cable connection , force range: 2 to 20KN.
PFTL101BER Pillow block tension gauge horizontal element with acid resistance , Fixed cable connection , Force range: 2 to 20KN. For tension measurement at the wet end of paper production, protection class IP66/67

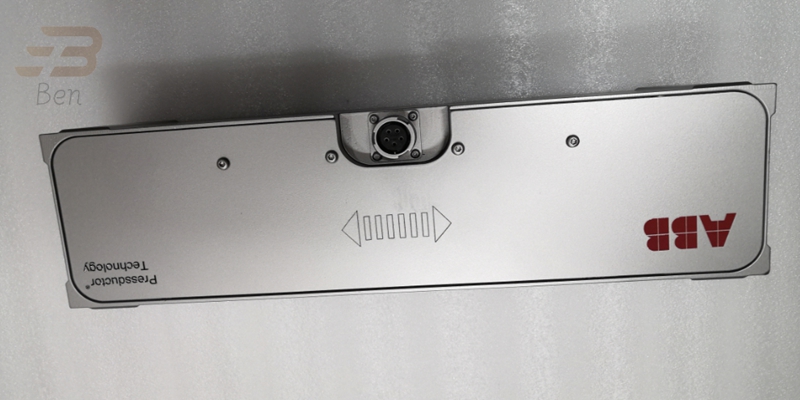

PFTL 201C Pillow block tension gauge with horizontal load cell , Cylindrical plug connection , Force range: 10 to 50KN.
PFTL201CE Pillow block tension gauge with horizontal measuring element , with Riteco fixed cable connection , measuring range: 10-50KN.
PFTL201D Pillow Block Tensioner Horizontal Force Measuring Element , Cylindrical plug connection , Force measuring range: 50~100KN.
PFTL201DE Pillow block tension gauge with horizontal force measuring element , fixed cable connection , force measuring range: 50~100KN.
PFVL141V Rectangular force measuring element, force range: 0.63~56MN; width range: 70~610mm; length range: 120~1320mm height: 74mm.
PFVL 141C Circular Force Measuring Element PFVL 141C, with Ryderco Force measuring range: 1.6~60MN; Diameter range: 210~890mm; Height: 74mm.
PFVL 141R Circular Force Measuring Unit PFVL 141R, Force Range: 2~28MN; Outer Diameter Range: 240~895mm; Inner Diameter Range: 100~595mm Height: 74mm
PXAH401 Millmate Operator Unit 400, panel mounted with Ritecoat, with network communication to the control unit. Dimensions: 160 x 235 x 60 mm, front protection IP65, other directions IP20, weight: 1.3 kg .
PFVA401 Rolling force controller for supplying excitation to pressure measuring elements with Riteco, with analogue input/output, digital input/output, Ethernet interface, RS232/485 interface, optional high-speed fieldbus communication interface.
The PFBL 141B/C vertical force test unit is available in single/dual roll, fixed/rotary shaft end versions, with a measuring range of 4 – 400 kN. The PFBL 141C is available in customised form factors.
PFEA101 for closed loop control of constant tension during unwind and winding, with the possibility of connecting pressure measuring elements and torque output devices such as brakes, clutches and motors.
PFEA111 Tension controller with two pressure measuring elements, compact and rail mounted.
The PFEA112 adds Profibus-DP fieldbus communication to the PFEA 111.
PFEA113 Tension controller with four load cells, Profibus-DP fieldbus communication and six configurable analogue outputs.
PFRL 101A radial force measuring element, rated load 0.5KN.
PFRL 101B Radial pressure measuring element, rated at 1.0KN.
PFRL 101C Radial pressure measuring element, rated from 0.5 to 2.0KN.
PFRL101D Radial pressure measuring element, rated load 5.0KN.
PFTL301E Mini paper web tension horizontal measuring element, measuring range: 0.1~1KN
PFCL301E Mini web tension vertical measuring element, measuring range: 0.2~1KN

ABB TENSOMETER Millmate strip tension measurement – principle of pressure head measurement
The piezomagnetic sensor works on the principle that the permeability of a magnetic material changes under the influence of a mechanical force. The sensor is made from a single piece of stainless steel with four holes punched in the stainless steel body. Through these four holes two sets of coils are wound at an angle to each other. When an alternating current is applied to the primary coil, a magnetic field is generated in the primary coil. Since the primary and secondary coils are at an angle to each other, no magnetic field is generated in the secondary coil as long as there is no load on the sensor. When a mechanical force is applied in the measuring direction of the sensor, the direction of propagation of the magnetic field in the primary coil changes and the secondary coil is incorporated into the magnetic field. As a result of the change in the magnetic field in the secondary coil, an induced potential is generated in this coil. The control unit converts this induced potential into a DC voltage signal proportional to the force being measured.
