ABB

PFEA111-20 Tension electronics 3BSE050091R20

The abb force measuring indenter is manufactured according to ABB’s patented magnetoelastic technology, also known as the piezomagnetic principle. The control unit supplies the indenter with the excitation power, processes the output signals from the indenter and transmits the measured values to an external system. The PFEA111/PFEA112 control unit can be set up and commissioned by the touch of a button. These functions are very easy to implement thanks to the user-friendly interface. Measured values are displayed in the PFEA111/PFEA112 and are communicated to external displays or other peripheral devices via the analogue outputs. Status or alarm messages are displayed on the PFEA111/PFEA112 control unit or output via ProfisBus DP (only valid for PFEA112).

Xiamen Xiongba Electronic Commerce Co. LTD

FROM:Mr. Wei

E-Mail:2322181769@qq.com

TEL/WeChat:15396237607

Get A Quote
Contact Us

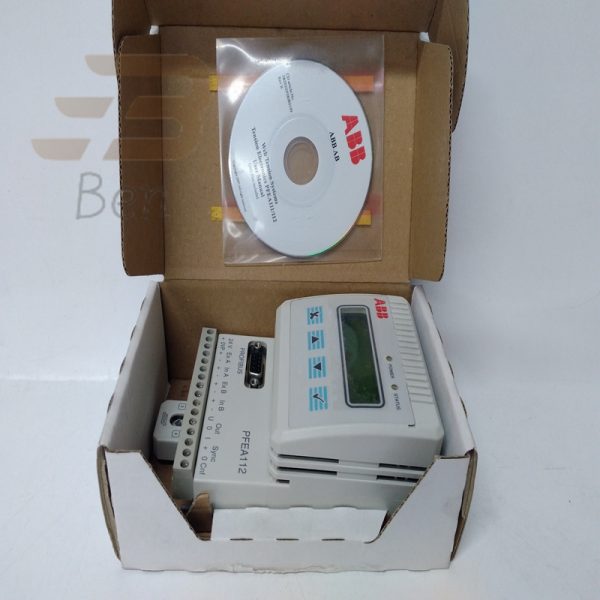

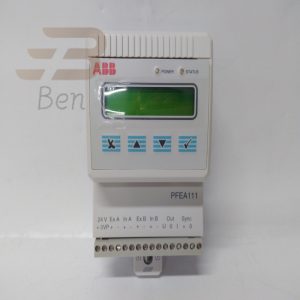

Tension electronics from ABB,PFEA111-20 3BSE050091R20

Control unit for power supply to the indenter and signal processing
The abb force measuring indenter is based on ABB’s patented magnetoelastic technology, also known as the piezomagnetic principle. The control unit supplies the head with the magnetisation power, processes the output signals from the head and transmits the measured values to external systems. The PFEA111/PFEA112 control unit can be set up and commissioned by the touch of a button. These functions are very easy to implement thanks to the user-friendly interface. Measured values are displayed in the PFEA111/PFEA112 and are communicated to external displays or other peripheral devices via the analogue outputs. Status or alarm messages are displayed on the PFEA111/PFEA112 control unit or output via ProfisBus DP (only valid for PFEA112).

ABB TENSOMETER Millmate strip tension measurement – principle of pressure head measurement
The piezomagnetic sensor works on the principle that the permeability of a magnetic material changes under the influence of a mechanical force. The sensor is made from a single piece of stainless steel with four holes punched in the stainless steel body. Through these four holes two sets of coils are wound at an angle to each other. When an alternating current is applied to the primary coil, a magnetic field is generated in the primary coil. Since the primary and secondary coils are at an angle to each other, no magnetic field is generated in the secondary coil as long as there is no load on the sensor. When a mechanical force is applied in the measuring direction of the sensor, the direction of propagation of the magnetic field in the primary coil changes and the secondary coil is incorporated into the magnetic field. As a result of the change in the magnetic field in the secondary coil, an induced potential is generated in this coil. The control unit converts this induced potential into a DC voltage signal proportional to the corresponding force being measured.
Features of ABB’s Millmate strip tension measuring – piezomagnetic indenter
The indenter is made from a single piece of machined stainless steel. It is sensitive only to the force in the direction of measurement. Forces in other directions are absorbed by the indenter due to its special structural design and thus have no effect on the forces in the measuring direction.
Wide measuring range: measuring range of 40:1, up to 200% of the rated range, down to 5% of the rated range.
Repeatable large overload capacity: 10 times the electrical overload capacity of the rated range and more than 30 times the mechanical overload capacity of the rated range, without plastic deformation or fatigue
No calibration required
No physical drift
High power sensor output signal (100mV):Large output signal and carrier frequency for excellent immunity to interference
Low impedance output (10 ohms): the indenter has better noise immunity and the output signal is insensitive to insulation conditions, making it more suitable for the harsh operating environment of mills. The pressure head is protected to IP65 for proper operation in sites with splashing.
ABB TENSOMETER Millmate strip tension measurement – system applications
Continuous annealing lines – Heater section
Cold rolling mills – Inlet tensioning rolls
Annealing – Pickling lines – Turning rolls
Sendzimir mills
3-stand cold strip mill – Intermediate stands
Benefits of ABB’s Millmate strip tension measurement system for users
Improved product quality
Reduced mill downtime due to unpredictable breakdowns and increased throughput
Increased mill speed

ABB has an extensive product line that includes a full range of power and distribution transformers, high, medium and low voltage switchgear products, AC and DC power transmission and distribution systems, power automation systems, a wide range of measurement devices and sensors, real-time control and optimisation systems, robotics hardware and software and simulation systems, energy-efficient motors and drives, power quality, conversion and synchronisation systems, fusing and switching devices for the safety of power systems. These products are used in a wide range of industrial, commercial, power and utility applications.

Power Systems Division: The Power Systems Division offers a complete range of systems and services for transmission and distribution networks and power plants worldwide, with a focus on substations and substation automation systems. In addition, the division offers Flexible AC Transmission Systems (FACTS) and High Voltage Direct Current (HVDC) transmission systems as well as grid management systems. In the Power Generation business area, the Power Systems Division offers instrumentation products as well as control and auxiliary devices for power plants.

Discrete Automation and Motion Control: The Discrete Automation and Motion Control segment supplies products, solutions and services that help customers improve productivity and energy efficiency. Its motors, generators, drive systems, programmable logic controllers, power electronics and robotics products are used in a wide range of automation applications in the areas of power, motion and control. The business segment’s leadership in the wind turbine industry and its growing product line in the solar sector will further contribute to the development of the existing skills, channels and operating platforms of the Discrete Automation & Motion Control division in the industrial sector.

Power electronics: SYNCHROTACT Concurrent equipment, control systems

PM851AK01 3BSE066485R1
PM856AK01 3BSE066490R1
PM858K01 3BSE082895R1
PM858K02 3BSE082896R1
PM860AK01 3BSE066495R1
PM862K01 3BSE076940R1
PM862K02 3BSE081636R1
PM866AK01 3BSE076939R1
PM866AK02 3BSE081637R1
PM891K01 3BSE053241R1
PM891K02 3BSE053242R1
SB822 3BSE018172R1
PM857K01 3BSE088385R1
PM857K02 3BSE088386R1
PM863K01 3BSE088381R1
PM863K02 3BSE088382R1
PM867K01 3BSE076355R1
PM867K02 3BSE081638R1
SM811K01 3BSE018173R1
SM812K01 3BSE072270R1

We do other brands: ABB, Allen-Bradley, Schneider, GE (General electric), Westinghouse, FANUC, Bently, KUKA, Foxboro, Triconex, Honwell, YASKAWA, etc., if you need, you can contact me, look forward to your consultation.
