Millmate Strip tension measuring tensiometer
PFEA113-20 3BSE028144R20 Tensimeter Millmate Strip tension measurement system overview
PFEA113-20 3BSE028144R20 Tensimeter Millmate Strip tension measurement system overview
ABB Tensiometer Millmate Strip tension measurement system overview
The ABB Tensiometer Millmate strip tension measuring system has the characteristics of ultra-high impact and overload resistance, fatigue resistance, long-term stability, no moving parts, and insensitivity to field electrical signal interference. Reduce mill downtime caused by unpredictable failures and increase production
The ABB Tensiometer Millmate Strip tension measuring system is used to measure strip tension to ensure that strip tension remains constant within the allowable range during acceleration and deceleration. The indenter is installed at both ends of the guide roller. A complete system includes:
PFEA111-20 3BSE028140R20 Tension control
PFEA112-20 3BSE030369R20 Tension control
PFEA113-20 3BSE028144R20 Tension control
PFEA111-65 3BSE028140R65 Tension control
PFEA112-65 3BSE030369R65 Tension control
PFEA113-65 3BSE028144R65 Tension control
PFSA103C 3BSE002488R1 Tension controller
PFXC141 3BSE029997R1 tension connection box
PFVO142 3BSE023732R1 Tension controller
PFSA145 3BSE008843R1 Tension controller
PFEA113-20 3BSE028144R20 Tensimeter Millmate Strip tension measurement system overview
3BSE030369R20 PFEA112-20 ABB Tensiometer Millmate Strip tension measurement
ABB Tensiometer Millmate Strip tension measurement – Indenter measurement principle：
Piezomagnetic sensor is based on the principle that the magnetic permeability changes under the action of mechanical force. The sensor is made of a single piece of stainless steel with four holes punched in the stainless steel body. Through these four holes are wound two sets of coils, which are at an Angle to each other. When an alternating current is passed through the primary coil, a magnetic field is generated in the primary coil. Because the primary and secondary coils are at an Angle to each other, no magnetic field is generated in the secondary coil as long as there is no load on the sensor. When a mechanical force is applied to the measurement direction of the sensor, the magnetic field propagation direction in the primary coil changes, incorporating the secondary coil into the magnetic field. Because the magnetic field in the secondary coil changes, an induced potential is created in that coil. The control unit converts this induced potential into a DC voltage signal proportional to the measured force.
ABB Tensiometer Millmate Strip Tension Measurement – Piezomagnetic indenter Features:
The indenter is made of a single piece of stainless steel. It is only sensitive to the force in the measured direction. Due to the special structural design of the indenter, the force in other directions is absorbed by the indenter, thus having no effect on the force in the measured direction.
PFCL201CD/CE pillow block tensiometer vertical load measuring element, using cable sealing joint/fixed cable connection with protective hose, force measuring range: 5~50KN;
PFTL 101A pillow tensiometer with Ruida technology horizontal load cell, cylindrical plug connection, measuring force range: 0.2~2KN.
PFTL101AE pillow block tension meter horizontal load cell, fixed cable connection, force range: 0.2~2KN.
PFTL101AER acid proof pillow type tensiometer horizontal load cell, fixed cable connection, force range: 0.2~2KN. It is used to measure the wet end tension of paper making, and the protection grade is up to IP66/67
PFTL101B pillow tensiometer horizontal load cell, connected with RADarco cylindrical plug, measuring force range: 2~20KN.
PFTL101BE pillow type tensometer horizontal load cell, fixed cable connection, measuring force range: 2~20KN.
PFTL101BER acid proof pillow type tensometer horizontal load measuring element, fixed cable connection, measuring force range: 2~20KN. It is used to measure the wet end tension of paper making, and the protection grade is up to IP66/67
Xiamen Xiongba Electronic Commerce Co. LTD
FROM：Mr. Wei
E-Mail：2322181769@qq.com
TEL/WeChat/WhatsApp:15396237607
Address: Unit 2009-2010, No.1733, Lvling Road, Siming District, Xiamen, China
PFTL101B 5.0KN 3BSE004191R1 Pillow block tensiometer horizontal load cell
PFTL 201C pillow tensometer horizontal load cell, cylindrical plug connection, force range: 10~50KN.
PFTL201CE pillow type tensometer horizontal load measuring element, connected with RADarco fixed cable, measuring force range: 10~50KN.
PFTL201D pillow type tension meter horizontal load cell, cylindrical plug connection, force measuring range: 50~100KN.
PFTL201DE pillow block tension meter horizontal load cell, fixed cable connection, force measuring range: 50~100KN.
PFVL141V rectangular load cell, measuring force range: 0.63~56MN; Width range: 70~ 610mm; Length range: 120~ 1320mm Height: 74mm
PFVL 141C round load cell PFVL 141C, Tongruidake measuring force range: 1.6~60MN; Diameter range: 210~ 890mm; Height: 74mm.
PFVL141R ring load cell PFVL141R, measuring force range: 2~28MN; Outer diameter range: 240~ 895mm; Inner diameter range: 100~ 595mm Height: 74mm
PXAH401 Millmate Operator Unit 400, panel mounted with Radarco, can communicate with the control unit network. Size: 160×235 × 60 mm, front protection class IP65, other direction IP20, weight: 1.3kg.
PFVA401 Rolling force controller provides excitation to the load measuring element with RADarco, with analog input/output, digital input/output, Ethernet interface, RS232/485 interface, optional high-speed fieldbus communication interface.
PFBL141B/C vertical force test unit, divided into single roller/double roller, fixed/rotating shaft end of different types, measuring range 4-400 kN. The dimensions of the PFBL 141C can be customized according to user requirements.
The PFEA101 operates constant tension closed-loop control during unwinding and winding, and can be connected to load cells as well as torque output devices such as brakes, clutches, and motors.

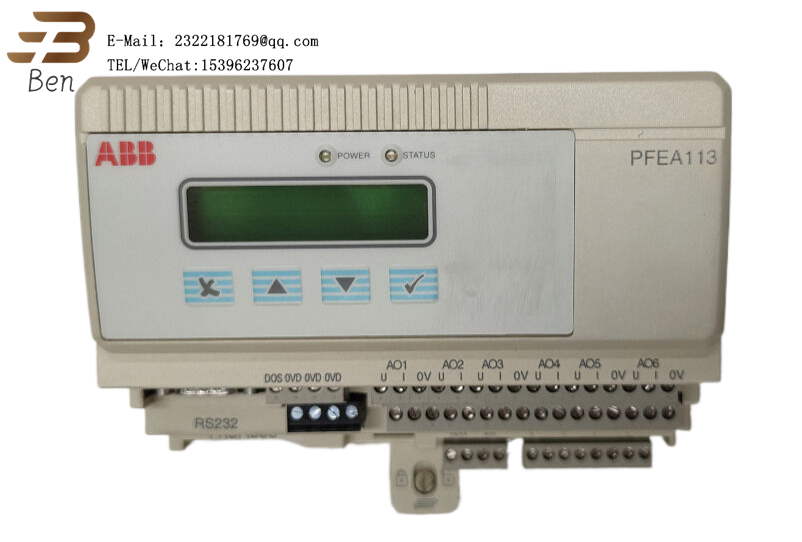

PFEA111 Tension controller with two load cells, compact, rail mounted.
