PFTL101B-5.0KN 3BSE004191R1 Pillow block tensiometer horizontal load cell

Pillow block tension meter horizontal load cell, fixed cable connection, force measuring range: 2~20KN.;The tensiometers, indenters and pressure sensors produced by ABB are widely used in steel, nonferrous, paper, metal deep processing and other industries. As a supplier of ABB tensiometers, indenters and pressure sensors in metallurgy and non-ferrous fields, it has been committed to serving the majority of steel and non-ferrous metal users

We still have a lot of models, brands not on the shelves, if you need me

Xiamen Xiongba Electronic Commerce Co. LTD
FROM:Mr. Wei
E-Mail:2322181769@qq.com
TEL/WeChat/WhatsApp:15396237607
Address: Unit 2009-2010, No.1733, Lvling Road, Siming District, Xiamen, China

Get A Quote
Contact Us

Pillow block tensiometer horizontal load cell

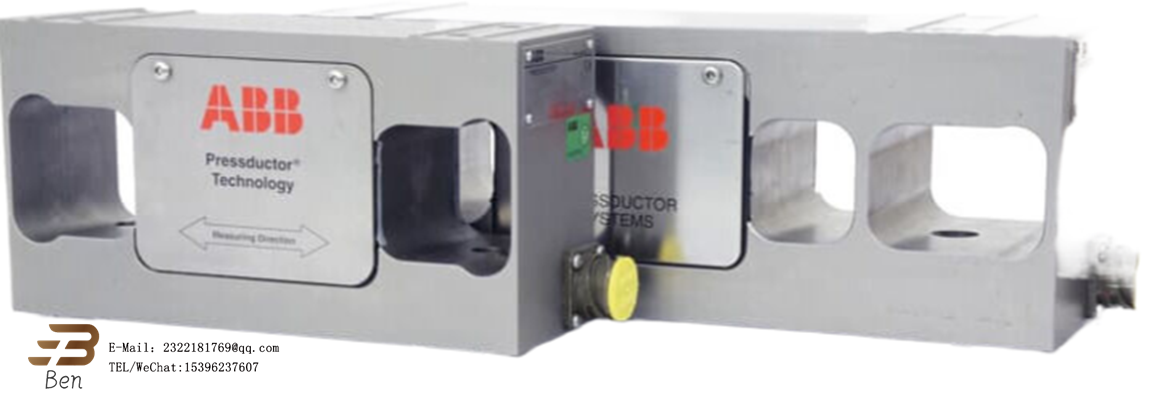

PFTL101B-5.0KN 3BSE004191R1 Pillow block tensiometer horizontal load cell
PFTL101B-5.0KN 3BSE004191R1 Pillow block tensiometer horizontal load cell
PFTL101B series of pillow block tensiometer horizontal load cell, connected with RADarco cylindrical plug, measuring force range: 2~20KN.
Gross Weight: 21 kg

The tensiometers, indenters and pressure sensors produced by ABB are widely used in steel, nonferrous, paper, metal deep processing and other industries. As a supplier of ABB tensiometers, indenters and pressure sensors in metallurgy and non-ferrous fields, it has been committed to serving the majority of steel and non-ferrous metal users

The working principle of the pillow block tensiometer is based on the piezomagnetic effect, that is, under mechanical loading, the magnetic properties of the magnetic conductive material will change. When subjected to mechanical loading, the magnetic field pattern generated by the primary coil in the sensor changes, and part of the magnetic flux is coupled to the secondary coil, thereby inducing an alternating voltage in the secondary coil that is proportional to the mechanical loading.

There are two main designs of the pillow block tensiometer: one is designed to measure the vertical force of the transmission, and the other is a special design of the strip tension coil caused by only the horizontal tension. This design makes the pillow block tensiometer particularly suitable for the accurate and stable measurement of tension in metal handling lines, such as pickling, annealing, galvanizing lines, etc.

PFCL201CD/CE pillow block tensiometer vertical load measuring element, using cable sealing joint/fixed cable connection with protective hose, force measuring range: 5~50KN;
PFTL 101A pillow tensiometer with Ruida technology horizontal load cell, cylindrical plug connection, measuring force range: 0.2~2KN.
PFTL101AE pillow block tension meter horizontal load cell, fixed cable connection, force range: 0.2~2KN.
PFTL101AER acid proof pillow type tensiometer horizontal load cell, fixed cable connection, force range: 0.2~2KN. It is used to measure the wet end tension of paper making, and the protection grade is up to IP66/67
PFTL101B pillow tensiometer horizontal load cell, connected with RADarco cylindrical plug, measuring force range: 2~20KN.
PFTL101BE pillow type tensometer horizontal load cell, fixed cable connection, measuring force range: 2~20KN.
PFTL101BER acid proof pillow type tensometer horizontal load measuring element, fixed cable connection, measuring force range: 2~20KN. It is used to measure the wet end tension of paper making, and the protection grade is up to IP66/67

Xiamen Xiongba Electronic Commerce Co. LTD
FROM:Mr. Wei
E-Mail:2322181769@qq.com
TEL/WeChat/WhatsApp:15396237607
Address: Unit 2009-2010, No.1733, Lvling Road, Siming District, Xiamen, China
PFTL101B 5.0KN 3BSE004191R1 Pillow block tensiometer horizontal load cell

PFSA140 3BSE006503R1 Roll Supply Unit PFSA 140

PFTL 201C pillow tensometer horizontal load cell, cylindrical plug connection, force range: 10~50KN.
PFTL201CE pillow type tensometer horizontal load measuring element, connected with RADarco fixed cable, measuring force range: 10~50KN.
PFTL201D pillow type tension meter horizontal load cell, cylindrical plug connection, force measuring range: 50~100KN.
PFTL201DE pillow block tension meter horizontal load cell, fixed cable connection, force measuring range: 50~100KN.
PFVL141V rectangular load cell, measuring force range: 0.63~56MN; Width range: 70~ 610mm; Length range: 120~ 1320mm Height: 74mm
PFVL 141C round load cell PFVL 141C, Tongruidake measuring force range: 1.6~60MN; Diameter range: 210~ 890mm; Height: 74mm.
PFVL141R ring load cell PFVL141R, measuring force range: 2~28MN; Outer diameter range: 240~ 895mm; Inner diameter range: 100~ 595mm Height: 74mm
PXAH401 Millmate Operator Unit 400, panel mounted with Radarco, can communicate with the control unit network. Size: 160×235 × 60 mm, front protection class IP65, other direction IP20, weight: 1.3kg.
PFVA401 Rolling force controller provides excitation to the load measuring element with RADarco, with analog input/output, digital input/output, Ethernet interface, RS232/485 interface, optional high-speed fieldbus communication interface.
PFBL141B/C vertical force test unit, divided into single roller/double roller, fixed/rotating shaft end of different types, measuring range 4-400 kN. The dimensions of the PFBL 141C can be customized according to user requirements.
The PFEA101 operates constant tension closed-loop control during unwinding and winding, and can be connected to load cells as well as torque output devices such as brakes, clutches, and motors.
PFEA111 Tension controller with two load cells, compact, rail mounted.
PFEA112 adds Profibus-DP fieldbus communication function on the basis of PFEA 111.
PFEA113 Tension controller with four load cells, Profibus-DP fieldbus communication, six configurable analog output ports.
PFRL 101A radial load cell with rated load of 0.5KN.
PFRL101B radial load cell with rated load of 1.0KN.
PFRL 101C radial load cell, rated load 0.5~2.0KN.
PFRL101D radial load cell, rated load 5.0KN.
PFTL301E mini web tension horizontal load cell, measuring range :0.1~1KN
PFCL301E mini web tension vertical load cell, measuring range :0.2~1KN
