Industrial Ethernet communication gateway
Prosoft PLX32-EIP-SIE Ethernet communication gateway
ProSoft Technology’s EtherNet/IP to Siemens Industrial Ethernet Communications Gateway enables high-speed bidirectional data transfer between Rockwell Automation PAC and Siemens S7 PAC. PLX32-EIP-SIE has two separate Ethernet ports, each protocol resides in a separate subnet, and data can be transferred between the two subnets without changing the IP address of individual devices.

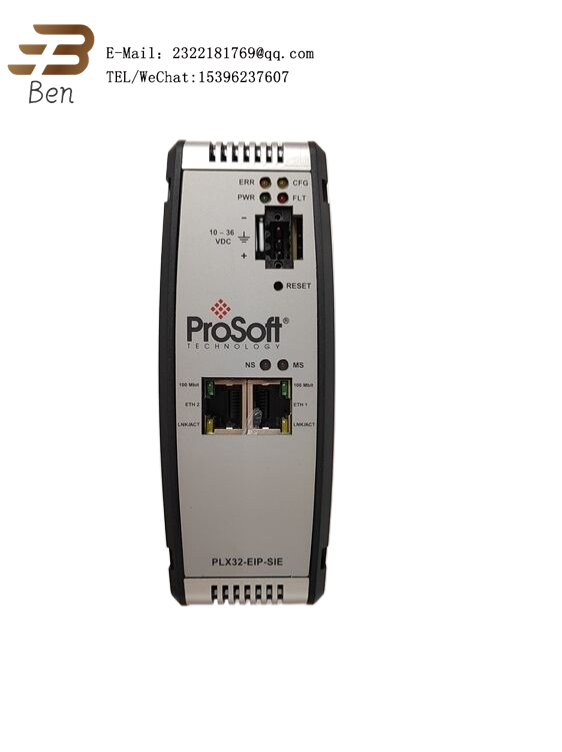

PLX32-EIP-SIE Ethernet communication gateway
PLX32-EIP-SIE specification：
Number of Type 3 server connections: 5
Supported PLC types: PLC2, PLC5, SLC, CLX, CMPLX
Supported message types: PCCC and CIP
Type 3 client connection: Connected – 2
Not connected -1
Number of Class 1 I/O connections: 2
I/O connection size: 248/248
Maximum RPI time: 5 ms per connection
Supported CIP service: 0x4C-CIP data table read
0x4D-CIP Data table writes
Command list: Each client supports 100 commands, each configurable for command type, IP address, register addressing, and word/bit count.
Command set: PLC-2/PLC-3/PLC5 Basic command set
PLC5 binary command set
PLC5 ASCII command set
SLC500 command set
