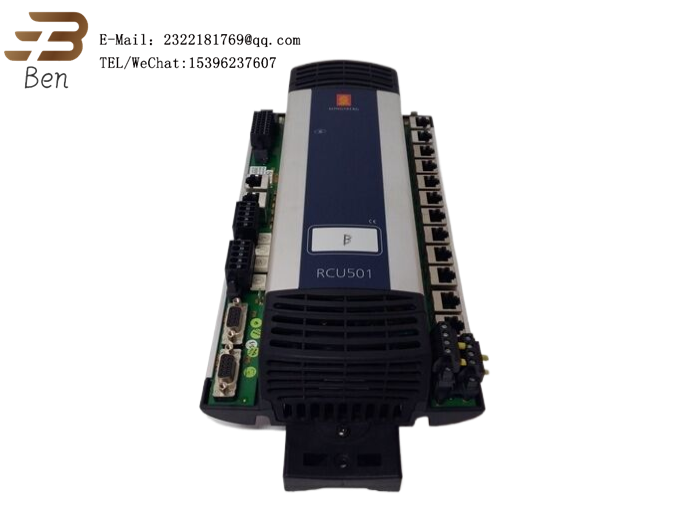

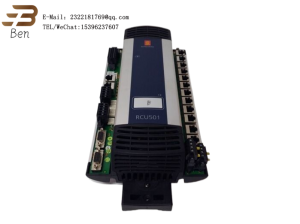

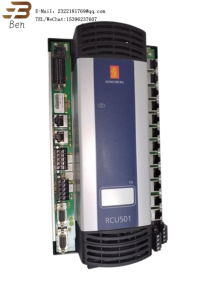

RCU501 High performance process controller
RCU501 High performance process controller-Ship spare parts
RCU501 is a high performance, general purpose, real-time process control computer for use in a wide variety of system applications in both on- and offshore installations.
Application types
• Dynamic Positioning Systems
• Thruster Control / Steering Systems
• Navigation Sensor Integrator
• Integrated Process Control Systems
• Alarm and monitoring Systems
• Safety Systems
RCU501 Remote Controller Unit Technical Specifications
KM article number
RCU501: 603439
Input supply voltage: 24 VDC
(+30%, -25%)
Nominal current consumption: ≈ 0.8 A
Start-up current: Max. 2.7 A
Power consumption: Max. 20 W
Heat dissipation: Max. 20 W
Power connectors:
• Screw terminals (slotted)
• Cable cross section: 2.5 mm²
Dimensions
Height: 355 mm
Width: 158 mm
Depth: 87 mm
Weight: 1.35 kg
KONGSBERG RCU500/RCU501/RCU502 real-time process control computer，KONGSBERG RCU510 Remote Controller Unit，RDIOR400，RAIC400，RDIOR420，SPBUS-HUB，RMP420，RMP201-8，RMP200-8，RSER200-4，MRU2，MRU-M-SU1，MRU-M-MB3
