Substation busbar protection device

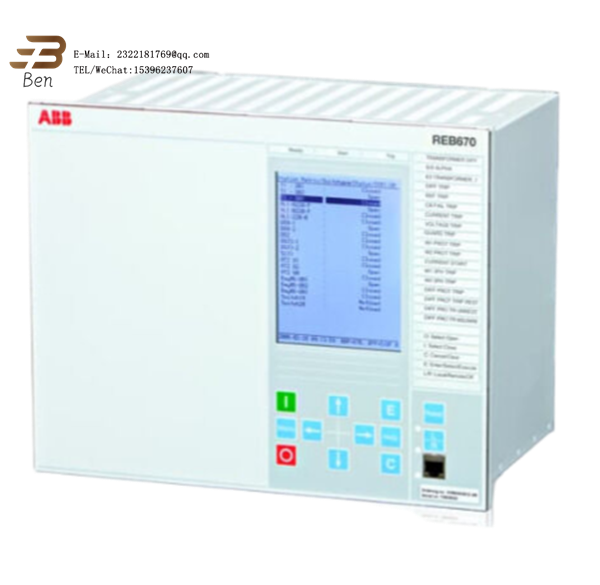

REB670 1MRK505206-SZH Substation busbar protection device
REB670 1MRK505206-SZH Substation busbar protection device
A busbar protection device in a Substation automation product REB670 is a device used to protect busbar equipment in a power system. Bus bar is one of the important equipment in power system, it is used to collect and distribute electric energy. When the busbar equipment fails, the busbar protection device can quickly detect the fault and take corresponding protective measures, such as cutting out the fault part or isolating the fault area, to prevent the expansion of the fault and ensure the stable operation of the power system.
The busbar protection device is usually composed of current and voltage transformers, relays, circuit breakers, etc. It can be configured and optimized according to different fault types and protection requirements, such as differential protection, overcurrent protection, ground protection, etc.
Busbar protection device plays an important role in substation automation products, it can improve the reliability and stability of power system, reduce the impact of fault on power system, and ensure the safety and reliability of power supply.
REB670 1MRK505206-SZH Substation busbar protection device
REB670 Technical performance：
• Fully compliant with IEC 61850 standards
• Integration of monitoring and protection functions
• Comprehensive self-test capabilities, including analog channel self-test
• Six independent parameter setting groups
• Switch and analog signal matrix, easy to set
• Ethernet interface for quick and easy communication with PC
• Large screen man-machine interface, you can browse the connection between each interval and the bus and the status of the primary device online
• Pre-configured solutions with default tuning through type testing can be used to:
– Single bus connection, 1 1/2 circuit breaker connection, double bus connection
– Double bus and single circuit breaker
• User management and permission Settings
Model: S-113N
Old order number 3BHB018008R0001
New order number 3BHB018008R0101
Net weight: 175 kg
Country of origin: Poland
Phase module
Model: S-093H
Old order number: 3BHB030478R0009
New order number: 3BHB030478R0309
Net weight: 220 kg
Country of origin: Poland
Phase module
S-073N 3BHB009884R0021
S-093H 3BHB009885R0004
S-113H 3BHB018008R0003
ABB 5SHY series IGCT SCR
