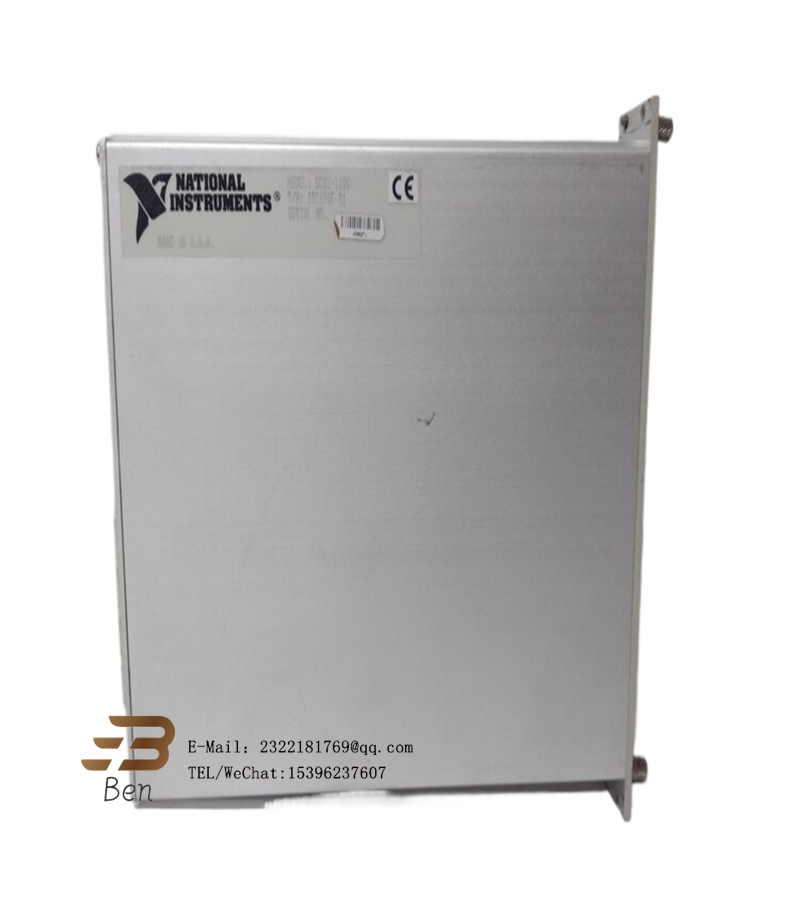

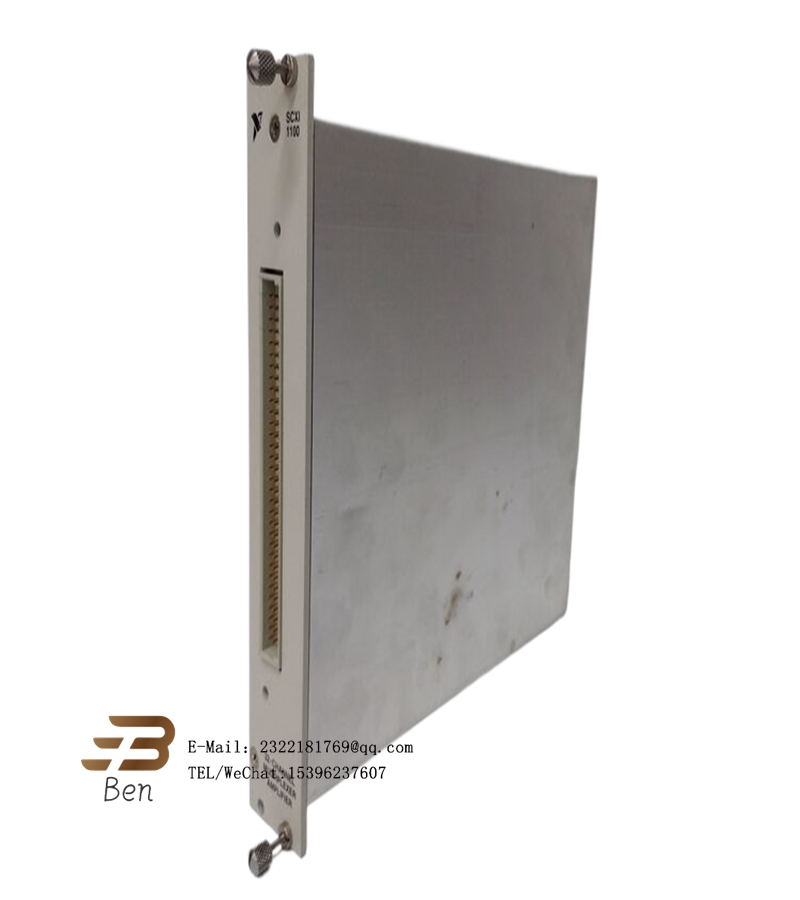

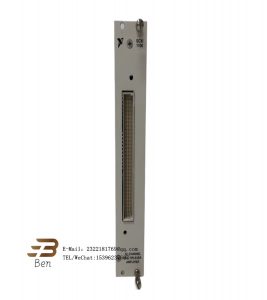

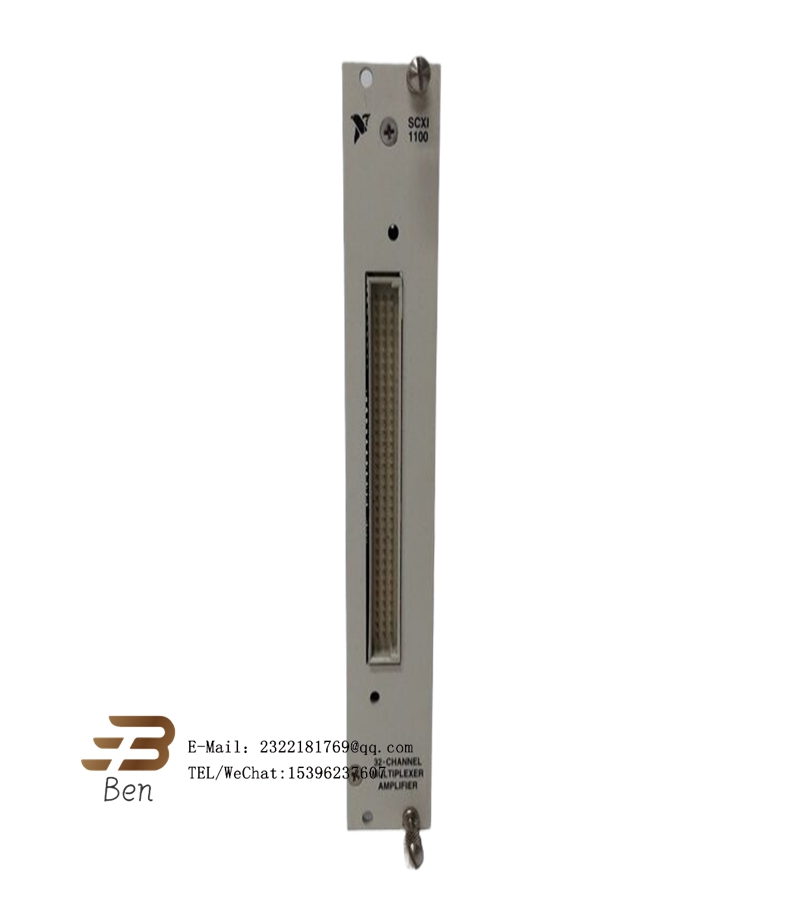

SCXI-1100 voltage input module
The SCXI-1100 is a voltage input module belonging to the SCXI (Signal Conditioning for XI) series. The module has 32 channels and is capable of measuring analog voltage signals as low as ±10 V from a variety of sensors. Each channel is multiplexed with a 4 Hz low-pass filter selected by a jumper and offers multiple gain range options.
The SCXI-1100 module is designed for data acquisition and signal processing and is suitable for signal conditioning of millivolt, volt and current signals. It also has a built-in signal conditioning function that allows direct connection to various sensors and transducers without the need for additional signal conditioning equipment. In addition, the module supports single-ended and differential measurement methods, which can be connected to different voltage sources for voltage measurement.
The SCXI-1100 module is an ideal choice for building efficient and stable measurement systems and is widely popular due to its compact size, high reliability and easy integration.
The SCXI-1100 is a multi-function module from National Instruments (NI) that is used in a wide range of applications. Its main application areas include:
Test and measurement: The SCXI-1100 can be used to test electronic equipment, communication equipment and medical equipment. In addition, it can provide power for various measurement devices, such as sensors and amplifiers, in a laboratory environment.
Data acquisition: This module is widely used in the acquisition system of industrial data, environmental data and scientific data to ensure the normal operation of measurement equipment and provide accurate data.
Control system: In the control system, the SCXI-1100 power module is used to provide the required power to the actuator or control device for automated control.
Physics experiments: In physics experiments, the SCXI-1100 power module can be used to provide the required power for a variety of sensors and detectors.
Automated test systems: In automated test systems, the SCXI-1100 power module is used to supply power to test equipment and sensors for automated testing and data acquisition.
Audio test and measurement: The SCXI-1100 is also suitable for audio test and measurement, noise and vibration diagnosis, machine condition monitoring, and noise, vibration and sound roughness analysis in automotive testing.
Industrial automation: In industrial environments, the SCXI-1100 can be used to provide the appropriate power supply for digital input modules, analog output modules, etc., thus ensuring the reliability and stability of industrial automation systems.
Educational use: The SCXI-1100 can also be used in educational institutions to help students understand the importance of power in measurement systems and to train them on how to configure and use data acquisition systems.
Signal conditioning: As a signal conditioning module, the SCXI-1100 provides a variety of signal conditioning functions, suitable for the measurement and acquisition of various sensors and signals.
To sum up, the SCXI-1100 has a very wide range of applications, covering many aspects from laboratory research to industrial automation, from data acquisition to audio testing, reflecting its flexibility and efficiency in different fields.
