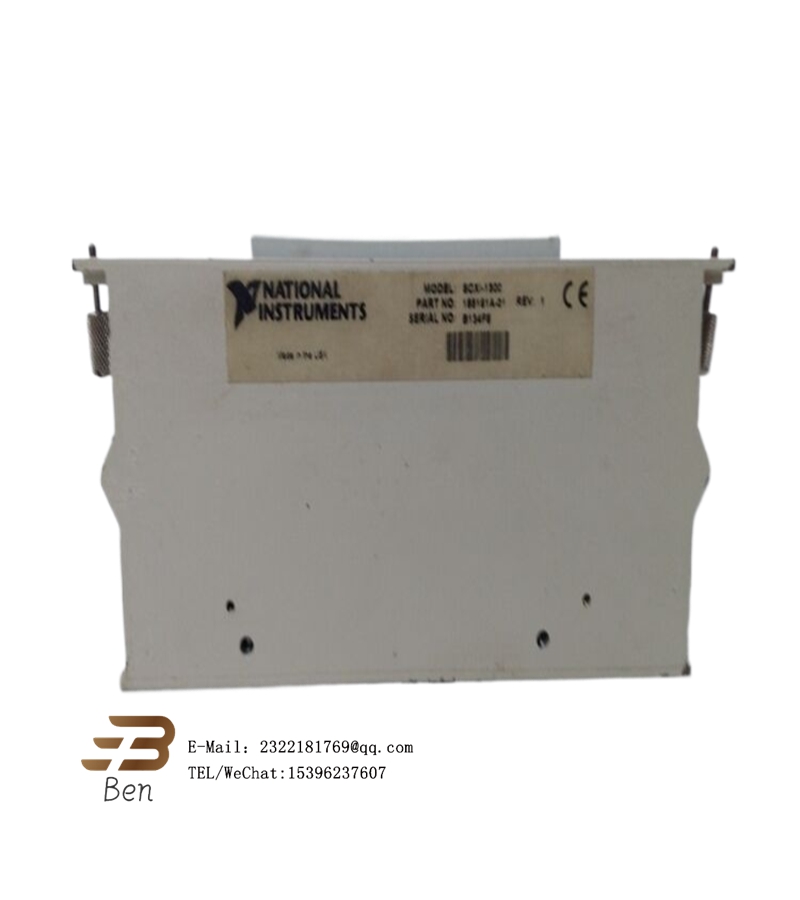

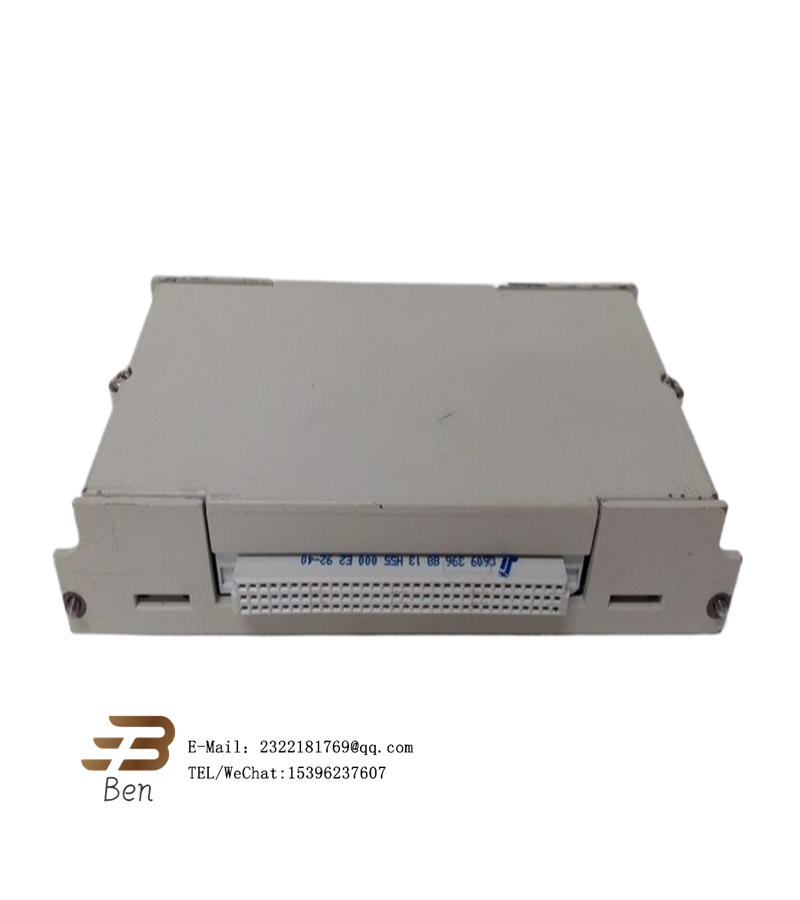

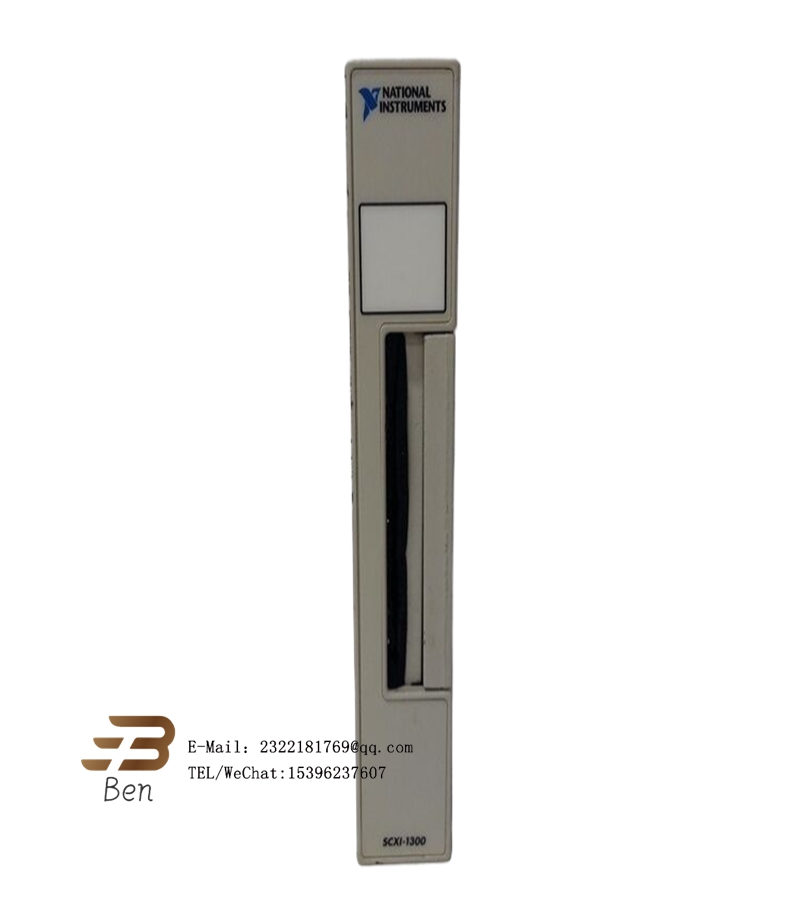

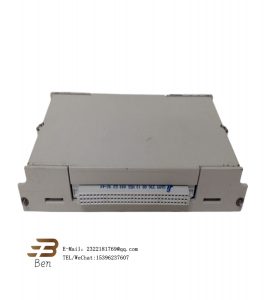

SCXI-1300 Multi-function module
The SCXI-1300 is a multi-functional module belonging to the Signal Conditioning eXtensions for Instrumentation (SCXI) series. The module has a variety of functions and application areas, mainly including the following aspects:
Universal terminal: The SCXI-1300 is a universal terminal equipped with an onboard temperature sensor for cold end compensation. It is capable of connecting input signals to the SCXI-1102 series, SCXI-1104 and SCXI-1100 modules.
Multi-channel switch module: The SCXI-1300 can be used as a multi-channel switch module to support fast switching between different measurement channels to support real-time data acquisition and control.
Isolated terminal block: Designed for thermocouple and millivolt measurement, this module provides channel-to-channel isolation and supports multiple thermocouple types.
Data input/output module: The SCXI-1300 can also be used as a data input/output module for a variety of applications, including data acquisition, laboratory measurement, automation control and test systems.
High accuracy and high speed sampling: The SCXI-1300 features high accuracy (16-bit resolution) and high speed sampling capability (up to 500 kS/s), and offers an output range of ±10 V.
Easy to use: The module provides the LabVIEW driver for easy programming and operation.
The SCXI-1300 is a powerful and flexible module that is widely used in industrial automation, data acquisition and control systems, providing users with reliable connectivity and temperature monitoring.
The SCXI-1300 is a high-performance, modular data acquisition system manufactured by National Instruments (NI) for a wide range of applications. Its main application areas include:
Industrial Automation: The SCXI-1300 plays an important role in industrial automation, especially where data acquisition, signal conditioning and temperature monitoring are required. It is capable of connecting various sensors and actuators to achieve precise control of industrial processes.
Laboratory testing and scientific research: The module is also widely used in laboratory testing and scientific research to measure various types of sensor signals such as temperature, photoelectric, pressure and sound. In addition, it also supports data acquisition, signal processing and real-time monitoring functions.
Environmental monitoring: The SCXI-1300 can be used for temperature measurement and signal processing in environmental monitoring to provide users with accurate and reliable data support.
Automotive Testing, Aerospace and communications: In addition to the above, the SCXI-1300 is widely used in automotive testing, aerospace and communications to meet the needs of these industries for high-precision measurement and data acquisition.
Sound and vibration applications: The module is also designed for sound and vibration applications, and the input channel integrates integrated circuit piezoelectric signal conditioning functions for accelerometers and microphones for the measurement of acceleration and sound signals.
In summary, the SCXI-1300 has a wide range of applications, covering several important areas such as industrial automation, laboratory testing, environmental monitoring, automotive testing, aerospace, communications, and sound and vibration measurement. Its high accuracy, high reliability, and powerful features make it ideal for these fields.
