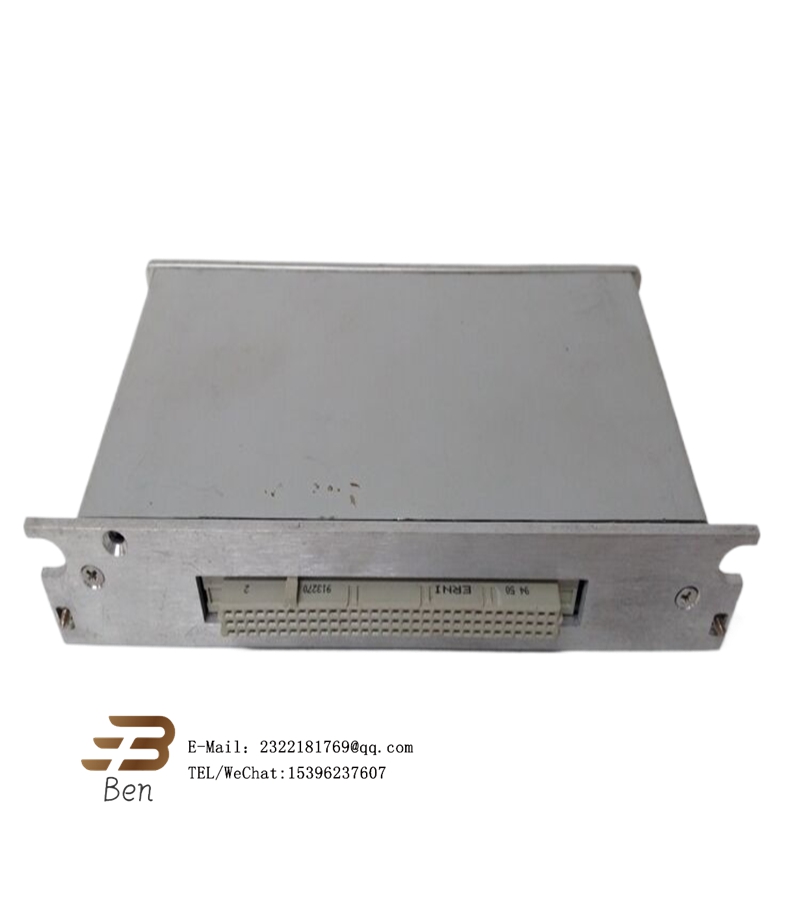

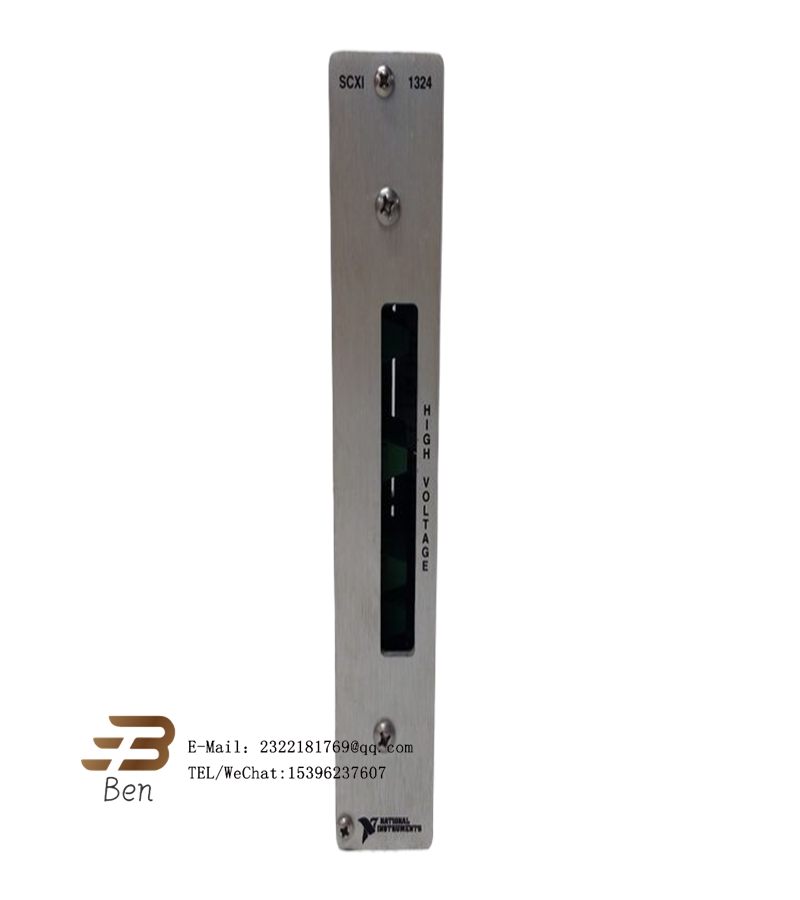

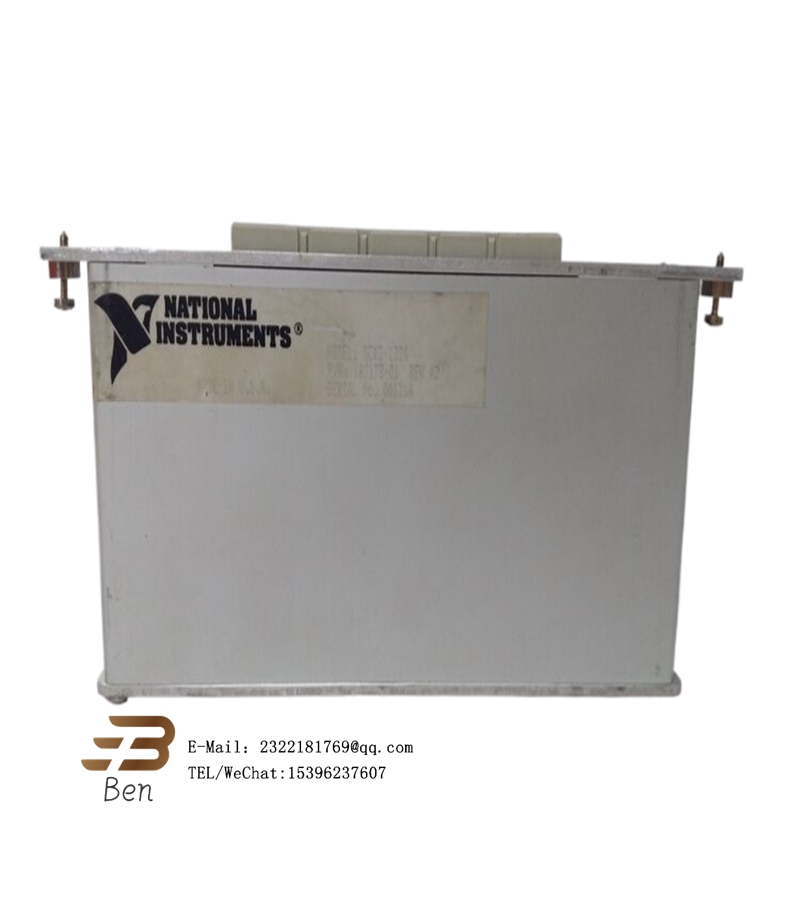

SCXI-1324 Multi-function module
The SCXI-1324 is a multifunctional module designed to connect and process high-voltage signals. The module has the following features:
High-voltage wiring function: The SCXI-1324 is a high-voltage screw terminal block capable of supporting voltages up to 2kV and provides multiple terminals to connect multiple high-voltage signals.
Multi-channel design: It is commonly used with the SCXI-1160 relay module and provides 48 screw terminals for easy connection of signals to the relay module.
Wide application: The module is suitable for a variety of high voltage measurement, high voltage equipment testing and laboratory measurement applications.
It is important to note that while some evidence mentions that the SCXI-1324 may involve features such as digital outputs or analog inputs, these descriptions are not accurate or may be confused with other models. Therefore, in summary, SCXI-1324 is mainly a multi-functional terminal block for high-voltage signal processing.
SCXI-1324 has a wide range of applications, mainly including the following aspects:
Industrial automation control system: SCXI-1324 has a wide range of applications in the field of industrial automation, especially in distributed control systems (DCS) and programmable logic controller (PLC) systems, to meet a variety of complex application needs. It is suitable for a variety of industrial automation scenarios, with high efficiency and reliability, easy to program and debug, easy to maintain and upgrade.
Laboratory measurements and scientific experiments: The SCXI-1324 is also suitable for laboratory measurements and scientific experiments for data acquisition and processing as well as signal analysis and diagnosis. Its multi-channel data acquisition capability makes it excellent in these areas, allowing it to monitor multiple sensors or signal sources simultaneously.
High-voltage test and measurement: The SCXI-1324 high-voltage terminal module is mainly used to connect high-voltage signals to the NI data acquisition system to realize the measurement and control of high-voltage signals. Therefore, it is widely used in high-voltage testing, power electronics, sensor testing and other fields. In addition, it supports voltages up to 1000V and currents up to 2A, offering a variety of connections such as banana sockets, screw terminals and BNC connectors.
High-voltage equipment testing and safety and stability testing: The SCXI-1324 can be used for testing and laboratory measurements of high-voltage equipment to ensure the stability and safety of signal connections. This makes it very useful in high-voltage measurement applications, such as connecting high-voltage sensors for temperature or voltage measurements.
SCXI-1324 applications cover many important fields such as industrial automation, laboratory measurement, high voltage testing and equipment testing, demonstrating its strong versatility and adaptability.
