Voltage regulation of small synchronous generator
UNITROL 1000-PM40 3BHE015411R0001 Voltage regulation of small synchronous generator
UNITROL 1000-PM40 3BHE015411R0001 Voltage regulation of small synchronous generator

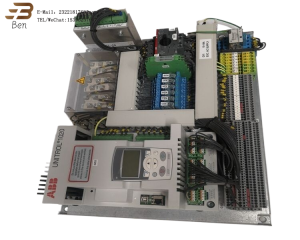

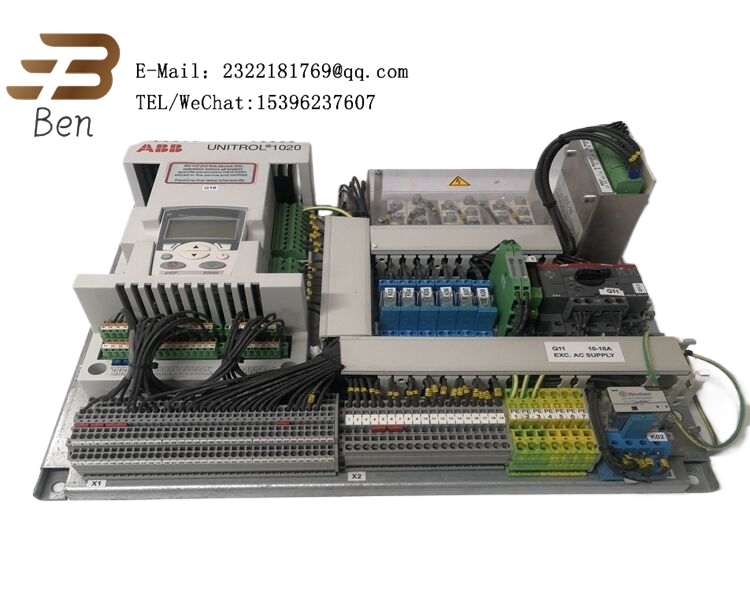

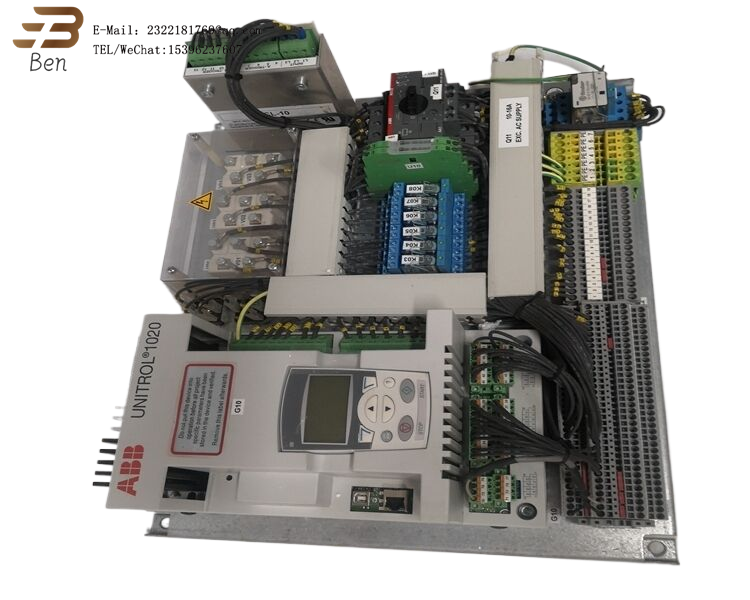

UNITROL 1020 is the voltage regulator of the UNITROL 1000 family intended for small and medium synchronous generators and industrial machines. UNITROL 1020 combines performance control and power circuits with a simple mechanical design
UNITROL 1020 is a powerful and compact automatic voltage regulator with built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options.
UNITROL 1020 is the voltage regulator of the UNITROL 1000 family intended for small and medium synchronous generators and industrial machines. This voltage regulator is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation. UNITROL 1020 provides high performance in a wide range of temperature and vibration conditions and it is fully certified according DNV and UL standards. UNITROL 1020 has additional features in contrast with legacy versions, as for instance Ethernet, USB, data and event logger and many others.
Excitation is the machine that supplies stator power to the stator of a generator or synchronous motor to provide an operating magnetic field for an electrical device such as a generator (which works using the principle of electromagnetic induction). Sometimes the device that provides rotor power to the generator rotor is also called excitation.
Depending on the excitation method of the DC motor, it can be divided into other excitation, parallel excitation, series excitation, compound excitation, etc. During the rotation of the DC motor, the excitation is to control the voltage of the stator so that the magnetic field generated changes, changing the speed of the DC motor, changing the excitation also plays a role in changing the speed.
UNITROL 1020-0006 FULL 3BHE030579R0006 Voltage regulation of small synchronous generator
UNITROL 1010-0002 LIGHT 3BHE035301R0002
UNITROL 1010-0003 BASIC 3BHE035301R0003
UNITROL 1010-0004 BASIC + SYNC 3BHE035301R000
UNITROL 1020
UNITROL 1020-0003 BASIC 3BHE030579R0003
UNITROL 1020-0004 BASIC + SYNC 3BHE030579R0004
UNITROL 1020-0006 FULL 3BHE030579R0006
UNITROL 1020-0007 FULL + PSS 3BHE030579R0007
UNITROL 1000-PM40
UNITROL 1000-PM40 3BHE015411R0001
Excitation is the device that provides stator power to the stator of a generator or synchronous motor.
Depending on the excitation method of the DC motor, it can be divided into other excitation, parallel excitation, series excitation, compound excitation, etc. During the rotation of the DC motor, the excitation is to control the voltage of the stator so that the magnetic field generated changes, changing the speed of the DC motor, changing the excitation also plays a role in changing the speed.
Definition of a generator excitation system
A generator consists of two main components.
(1) The rotor – the rotor winding is fed with DC to generate the generator’s magnetic field.
(2) Stator – the stator winding is cut by the magnetic lines of force of the magnetic field to produce (generate) current in the stator winding. In the case of an alternator, the rotor of the generator is dragged by the prime mover (turbine, steam turbine, diesel engine, etc.) and therefore the magnetic field generated by the rotor winding is rotating, with the stationary stator winding cutting the magnetic lines of force relative to the motion.
