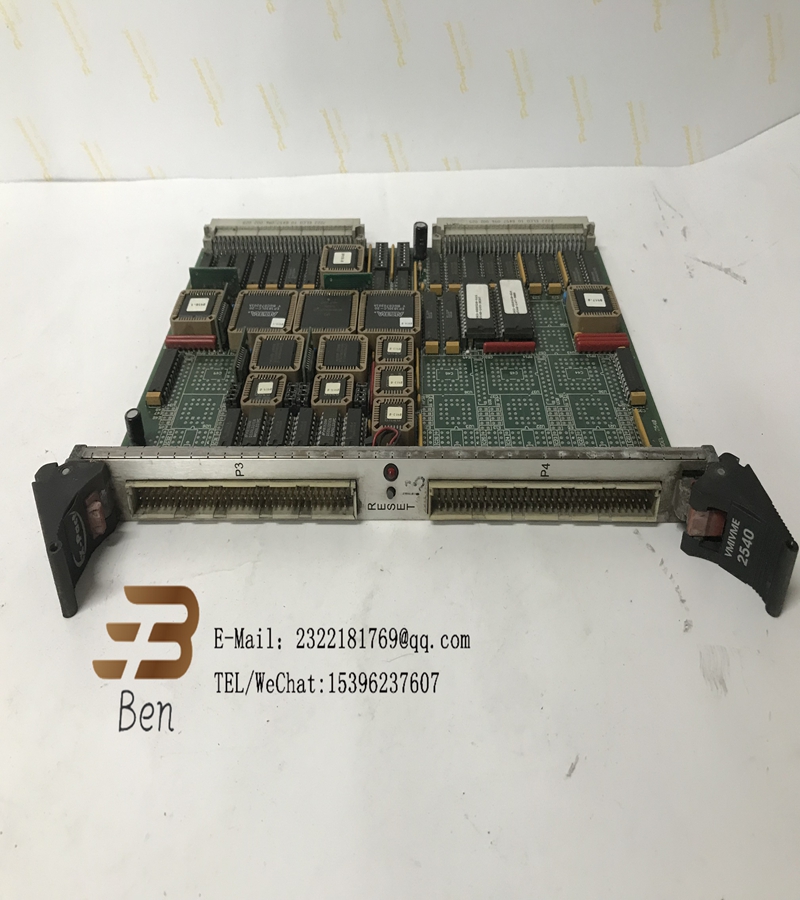

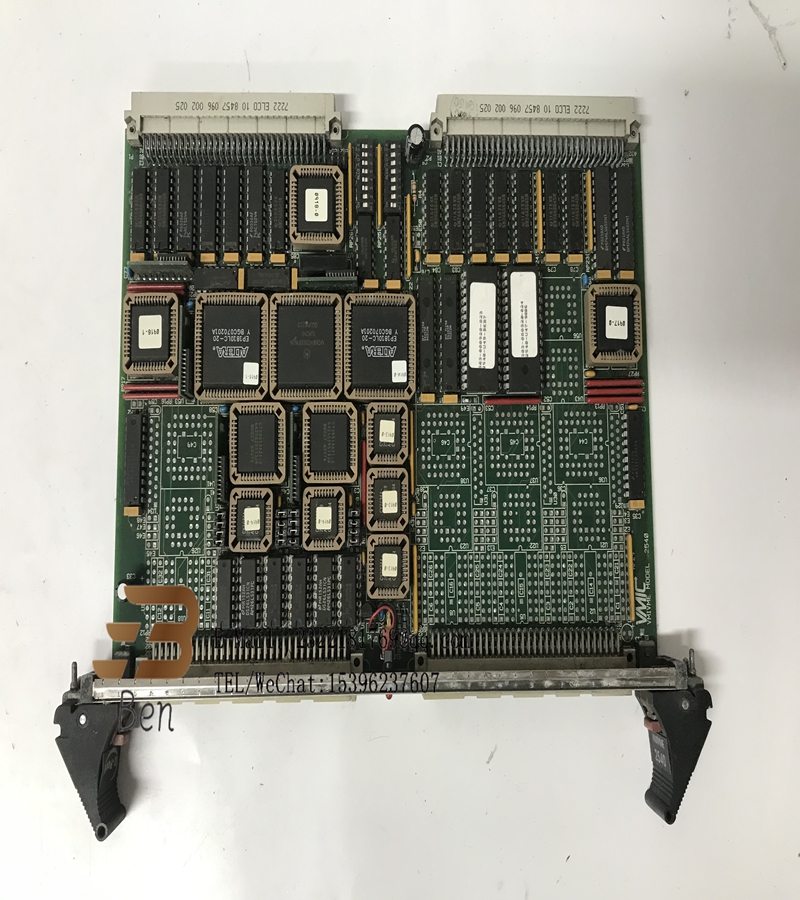

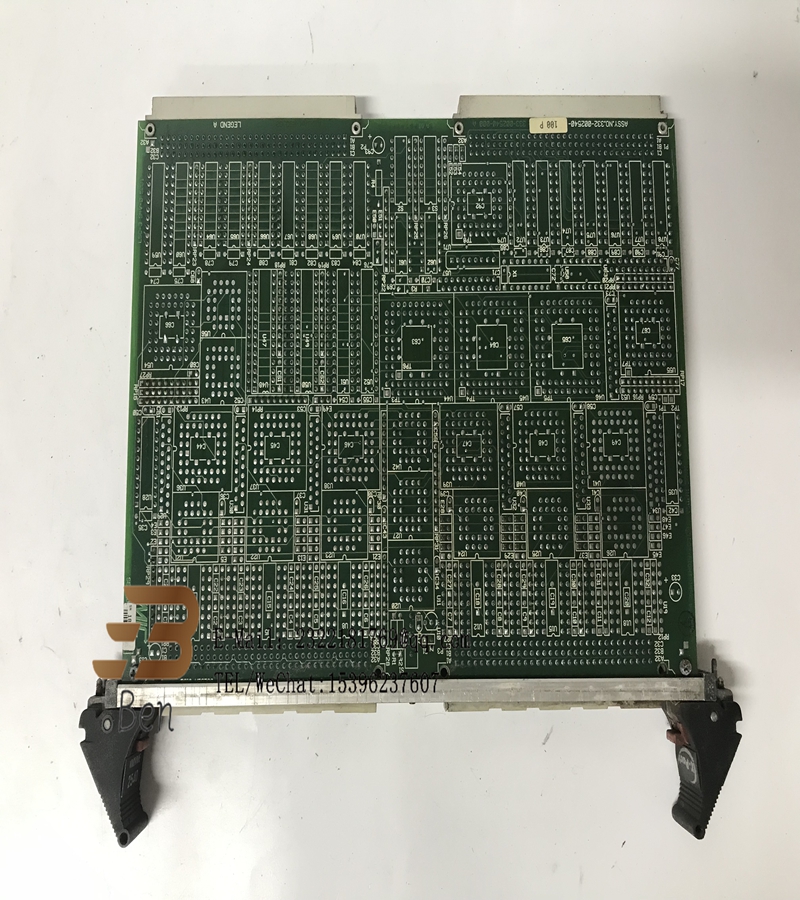

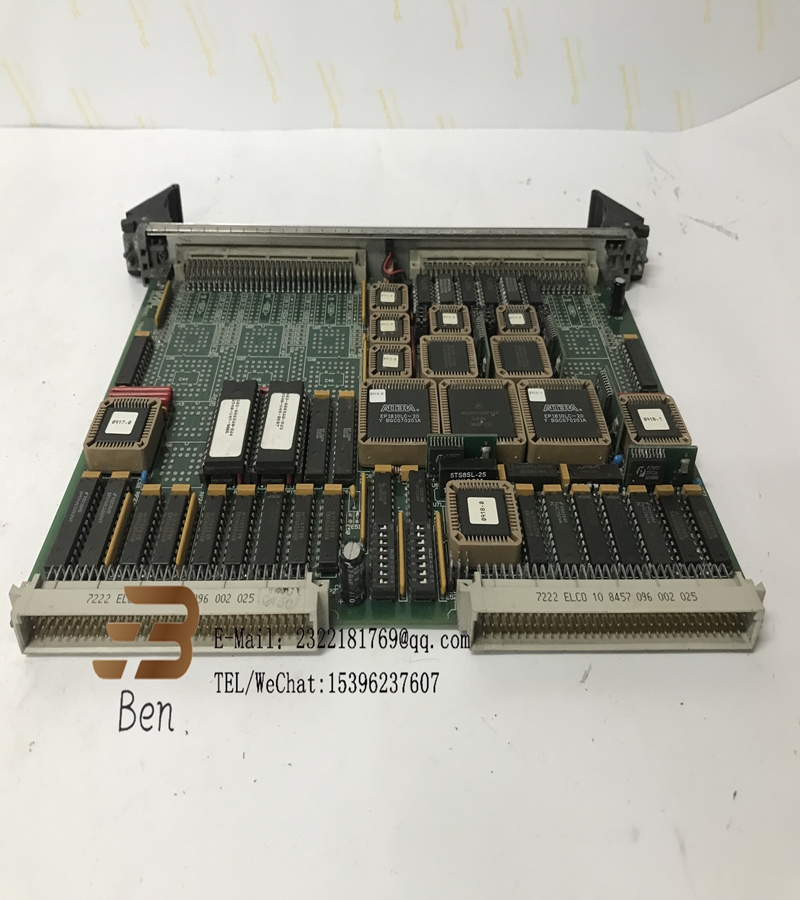

VMIVME-2540 Intelligent counter/controller module

VMIVME-2540 Intelligent counter/controller module
The VMIVME-2540 is an intelligent counter/controller module developed and produced by General Electric (GE) and belongs to the VMIC/GE Fanuc family. Based on the VME bus design, the module has 24 discrete input channels and can perform high-speed counting and control functions.
Specifically, the VMIVME-2540 has the following key features and functions:
High Precision measurement and generation: The module provides high precision digital measurement and signal generation capabilities, supporting a variety of measurement and output functions, such as pulse counting, frequency measurement, period/pulse width measurement, etc.

Flexible configuration options: Users can select 4, 8, 16, or 24 channel configurations to meet different application requirements.
Reliability and stability: The use of high-precision counting/controller chips ensures its reliability and stability in various industrial environments.
A wide range of applications: suitable for rotary axis instruments, automotive industry testing, robots, telescopes and other industries, to meet the needs of different application scenarios.
Various communication interfaces: Supports a variety of communication interfaces, including Ethernet, RS-232 and RS-485, etc., to facilitate connection and data exchange with other systems.
Local CPU control: The built-in 68HC000 microprocessor executes on-board functions through a command-driven user interface, eliminating the need to directly program the system timing controller.
High-density connectors: I/O connections are achieved through high-density connectors, ensuring good electrical performance and reliability.
In summary, the VMIVME-2540 is a versatile and high-performance intelligent counter/controller module designed specifically for industrial automation applications, offering a wealth of features and flexible configuration options to meet the needs of a variety of complex industrial environments.

The VMIVME-2540 is used in a wide range of industrial and measurement systems. The following are its main application areas:
Industrial automation: The VMIVME-2540 plays an important role in industrial automation systems, controlling various equipment, machinery and processes to ensure the stability and efficiency of production lines.
Measurement and test systems: This module is suitable for systems that require high precision counting and measurement, such as the control and monitoring of flowmeters, sensors, encoders and other devices.
Smart homes and smart meters: The VMIVME-2540 is also widely used in the field of smart homes and smart meters, providing reliable digital signal processing capabilities.
Rotational axis instrument: It can be used for measurement and control of angular position, velocity, acceleration, for example in robotics, telescopes/observatories, etc.
Automotive industry testing: The VMIVME-2540 also has important applications in automotive industry testing, such as brake, transmission, tachometer testing and verification.

Marine and Offshore Industrial facilities: The module is also designed for use in Marine and offshore industrial facilities such as mines, paper mills and petrochemical plants.
Packaging machinery: In the field of packaging machinery, VMIVME-2540 is used to control the counting, slitting and other functions of packaging machinery.
Elevators and bridge cranes: In addition, it is used for linear position measurement of elevators and bridge cranes, including measurement of distance, speed and acceleration.
Medical/Laboratory instruments: The VMIVME-2540 is also used for accurate measurement and control of medical and laboratory instruments.
Network communication: The high-performance version VMIVME-2540-300 is suitable for high-speed network connections and has a wide range of applications in industrial control, Internet of Things, edge computing and other fields.
To sum up, the VMIVME-2540, with its powerful capabilities and flexibility, is used in a wide range of fields, from industrial automation to complex measurement and control systems, providing efficient and reliable solutions.
