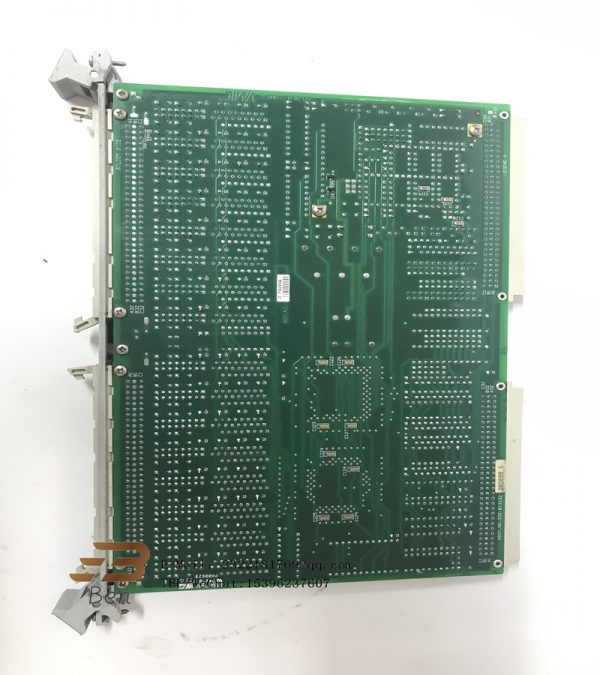

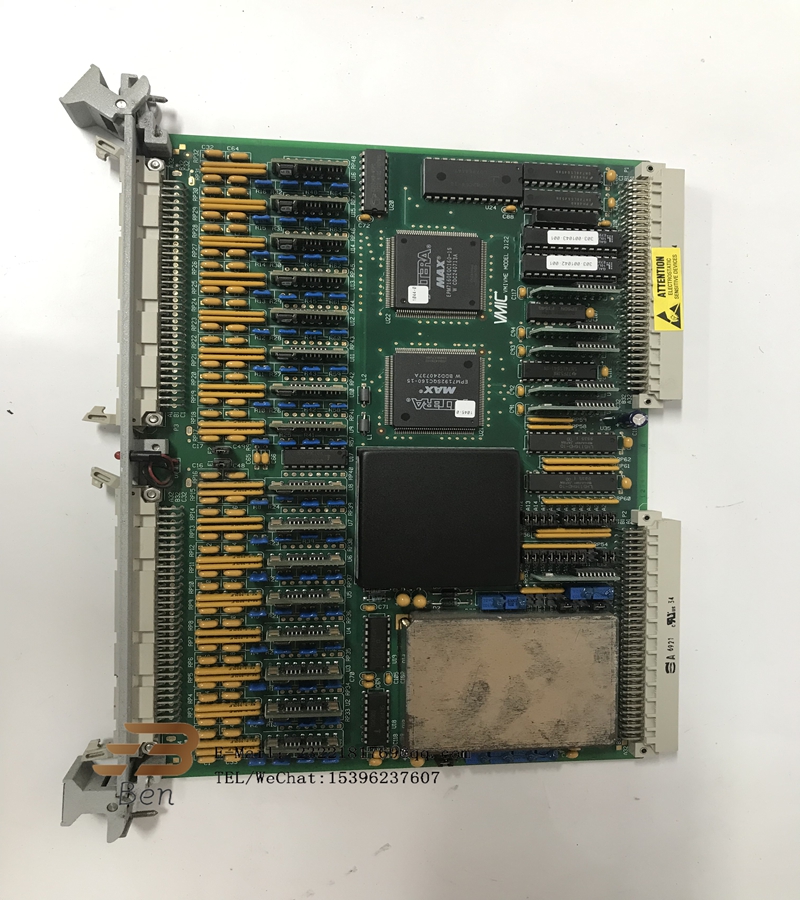

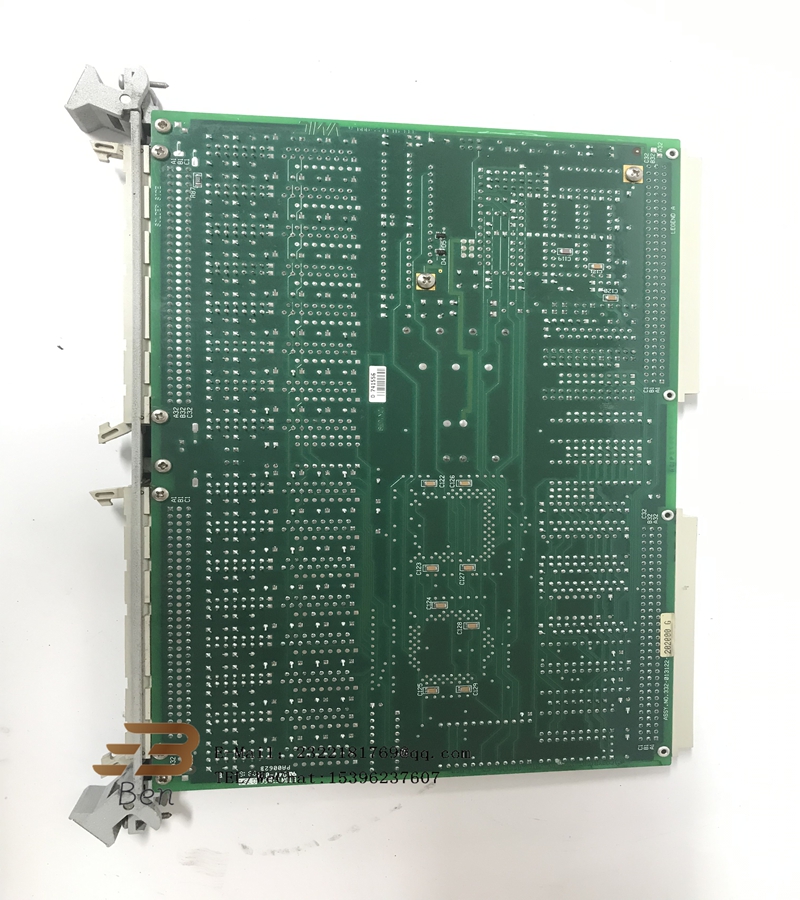

VMIVME-3122 16-bit ADC board card

VMIVME-3122 16-bit ADC board card
The VMIVME-3122 is a high-performance 16-bit analog-to-digital converter (ADC) board that belongs to the VMIC (VMIC Industrial Computing) family developed by GE. The product is mainly used for analog input/output applications in VME bus systems.
Specifically, VMIVME-3122 has the following characteristics:
Digital resolution: 16 bits, can provide high precision analog-to-digital conversion.
Programmed gain: Users can set different gain values through the software to adapt to different measurement needs.
Optional conversion rate: Users can choose different sampling rates, up to 100 kHz, to meet different real-time requirements.
Automatic scanning function: Supports automatic scanning of 64 differential or single-ended input channels, which can continuously digitize the selected input channels and store the results.
Dynamic range and channel density: Provides excellent dynamic range and high density analog input channels, making it suitable for applications requiring high accuracy and speed.
Multiple operation modes: Supports multiple operation modes, including three trigger modes and three scan modes, to adapt to different application scenarios.
In addition, the VMIVME-3122 features dual-port data memory, onboard timers, automatic control gain, and programmable bus interrupters that allow it to handle a wide range of analog input traffic with minimal host processor involvement.
In summary, VMIVME-3122 is a powerful and flexible analog to digital converter board, widely used in industrial control, data acquisition, communication and other fields, to provide users with high reliability and high performance solutions.

The VMIVME-3122 is a high-performance 16-bit analog-to-digital converter board used in a wide range of applications. Its main application areas include:
Factory automation: The module can be used for the collection of temperature, pressure, flow and other parameters of mechanical equipment, electrical equipment, etc., to meet the needs of precision control.
Process control: Suitable for process control systems in various industrial environments, such as energy management.
Data acquisition system: Capable of handling large amounts of analog input traffic with minimal involvement of the host processor, providing high resolution and dynamic range.
Training simulator: Used to simulate a real environment for training and education.
Laboratory instruments: Due to its high precision and flexibility, it is also suitable for the development and application of laboratory instruments.
Communication system: Supports a variety of communication protocols and is suitable for communication systems requiring complex signal processing and data acquisition.
In addition, the VMIVME-3122 also has powerful functions and high reliability, which is suitable for the construction of high performance and high reliability industrial control systems. To sum up, the VMIVME-3122 has a wide range of applications, ranging from factory automation to laboratory instrumentation.
